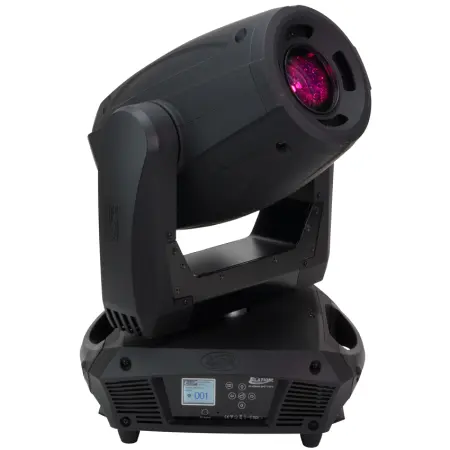

Elation Lighting Platinum Spot LED II (Elation PlatinumSpot LED 2)

The new Platinum Spot LED II features an extremely bright 135W Cool White LED source, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 14 gobos including 7 interchangeable, rotating, and indexing glass gobos, a static dichroic color wheel with 8 colors plus white, 3 facet and infinity rotating / indexing prisms with 16 prism macros, frost filter hybrid wash effect, motorized iris, focus, and dimming, high speed mechanical shutter / strobe, hibernation mode, 7 internal auto programs, 3 and 5pin DMX in/out and powerCON in/out connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for tv and film.

SOURCE
135W LED Engine 6,500k

PHOTOMETRIC DATA
Max 11,220 LUX (1042 fc) @2.5M (17°Full On)
60,000 Hour Rated LED Life

FEATURES
Hibernation Mode
RDM - Remote Device Management
540°/630° Pan - 265° Tilt
Motorized Focus / Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
7 Auto Program Macros + Two Direction Color Effect

EFFECTS
Frost Filter Hybrid Wash Effect
Motorized Iris: 5% - 100%
Rotating 3 Facet and Infinity Prisms + 16 Macros

COLOR
1 Color Wheel - 8 Dichroic Colors (Red, Blue, Green, Lt. Yellow,
Magenta, Salmon Pink, Lt. Blue, Pink) + White

GOBOS
Wheel 1: 7 Interchangeable / Rotating / Indexing / Glass
Wheel 2: 7 Static / Metal
Size: OD 27mm / ID 22mm

CONTROL / CONNECTIONS
3 DMX Channel Modes (16 / 14 / 20)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin & 5pin DMX In/Out / powerCON In/out

SIZE / WEIGHT
Length: 14.7” (373mm)
Width: 13.2” (335mm)
Vertical Height: 20.7” (526mm)
Weight: 35.3 lbs. (16kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
230W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)

APPROVALS / RATINGS
CE + cETLus Approved
RoHs Compliant
IP20 Rated

INCLUDED ACCESSORIES
(2) Omega Brackets (SKU # 207990006)
(1) Safety Cable
(1) 3pin DMX Cable
(1) powerCON Cable
