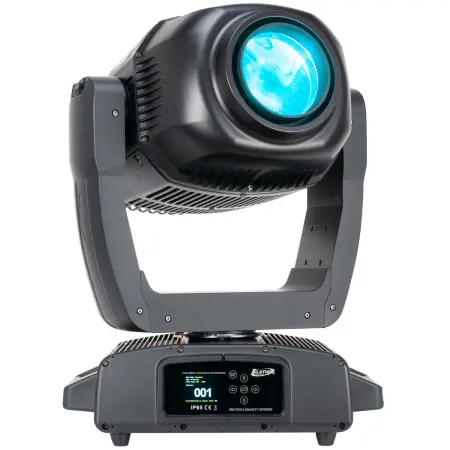

Elation Proteus Smarty Hybrid

$8,500.00 new
Reviews: 0 Description Financing Q&A: 0
or $773/mo $0 Shipping, $0 Tax



Available - Call to confirm exact lead time
Low Price Guarantee



or $ 773/mo $0 Shipping, $0 Tax


Product Description

The Proteus Smarty Hybrid is full featured IP65 certified Spot, Beam and Wash Hybrid fixture for indoor and outdoor use. It features the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours. Features include up to 11,000 total lumen output, motorized zoom ranges of 1° to 18° in beam mode, 3° to 27° in spot mode, and 5° to 33° in wash mode, a full CMY color mixing system, a full frost filter for wash effects, 13 dichroic colors including a quad-color filter, CTB, CTO, and UV, 8 rotating—interchangeable glass and 12 static-stamped metal gobos, a 16-facet and 5-facet linear independent rotating prisms, multiple CMY color, gobo, and prism macros, motorized focus with an auto-focus feature, high speed shutter and strobe, lamp hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, IP65 5pin XLR, IP65 RJ45 ethernet in/out and IP65 Locking Power Cable in connections, full color 180° reversible LCD menu display with battery backup, and a multi-voltage universal auto switching power supply (100-240V).

Features:
IP65 Certified 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology from 190 to 280W and Lamp Hibernation with up to 6000 Hour Lamp Life
Full CMY Color Mixing System
Rotating and Static Gobos, Dual Prism, Frost
Zoom from 1° Beam to 33° Wash and Auto Focus option

Specifications:
SOURCE
Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, Dimming, and Lamp Mode.

PHOTOMETRIC DATA
Up to 11,000 Total Output Lumen (preliminary)
128,426 LUX @15m (Beam Mode) (preliminary)

EFFECTS
Beam, Spot, Wash Modes
Motorized Zoom 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
Full Frost Filter for Wash Effects
16-Facet and 5-Facet Linear Prisms
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe

COLOR
Full CMY Color Mixing System
13 Colors including Quad Color, CTO, CTB, and UV

GOBOS
2 Gobo Wheels
8 Rotating / Indexing Interchangeable Glass Gobos
12 Static-Stamped Metal Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes (20 / 34)
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
IP65 5pin XLR DMX In/Out
IP65 RJ45 ethernet In/Out
IP65 Locking Power Cable In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 17.5 in (444.71mm)
Width: 17.88 in (459mm)
Height: 26.97 in (685mm)
Weight: 78.26 lbs. (35.5kg)

ELECTRICAL
AC 100-240V 50/60Hz
Max Power Consumption 500W

APPROVALS / RATINGS
CE | cETLus | IP65

FIRMWARE UPDATES
Current Version: V1.1.4

Elation Professional PRS022   ( Elation PRS022 )
