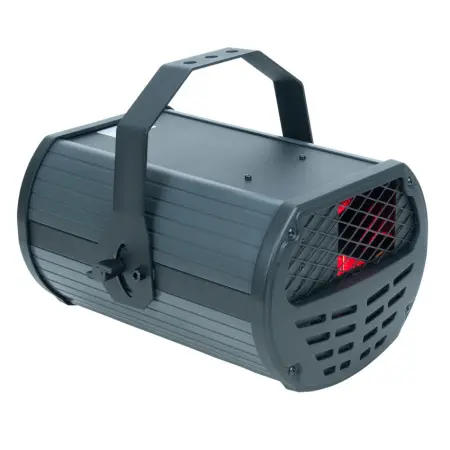

Elation Lighting SNIPER 2R (Elation Sniper 2R)
SKU# SNI550



Fast, precise and powerful the new Sniper 2R is a revolutionary new hybrid effects projector, scanner and laser simulator which features new lamp technology, the MSD Platinum 2R Lamp at 132 Watts / 6,000 hours. Capable of producing powerful and precise beam and laser like effects - including liquid sky, laser wave and cones, all moving at speeds never seen before. The Sniper 2R™ main functions include a X / Y scan and Z rotation mirror system, 3 facet rotating prism, variable speed shutter / dimmer / strobe, 14 dichroic colors, 17 static gobos including beam reduction gobos, 5pin DMX and powerCON in/out connections, (4) button control panel, 220W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).

PRESS RELEASE (click to read)

SNIPER 2R™ Light Show Demo (click to view)

PROJECT PHOTO GALLERY (click to view)


FEATURES
Multi Effect Luminaire, Beam, Scanner, Laser Simulator
3° Precision Beam
3 Facet Rotating Prism
X / Y and Z High-Speed Mirror System

SOURCE
132W Platinum 2R Lamp
6,000 Hour Average Life

PHOTOMETRIC DATA
Measured with 3° Beam Full On
45,010 LUX 4,181 FC @16.4’ (5m)
12,050 LUX 1,119 FC @32.8’ (10m)
5,633 LUX 523 FC @49.2’ (15m)
3,178 LUX 295 FC @65.6’ (20m)
2,276 LUX 212 FC @82.0’ (25m)

EFFECTS
Strobe
Electronic Dimmer
3 Facet Rotating Prism
Multiple Pattern Macros

COLOR
(14) Dichroic Colors + White

GOBOS
(17) Gobos + Open

CONTROL / CONNECTIONS
(2) DMX Channel Modes (14 / 16 / 18)
4 Button Control Panel
5pin DMX In/Out
powerCON In/Out

SIZE / WEIGHT
Length: 14.2” (361mm)
Width: 12.0” (305mm)
Vertical Height: 11.6” (295mm)
Weight: 21.0 lbs. (9.5 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
220W Max Power Consumption
Multiple Unit Power Linking (max 7 @120V / 14 @230V)
104°F (40°C) Max Ambient Temperature

APPROVALS / RATINGS
CE
cETLus Pending
IP20

INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Any (360°)

INCLUDED ITEMS
(1) Adjustable Mounting Yoke
(1) powerCON Cable
