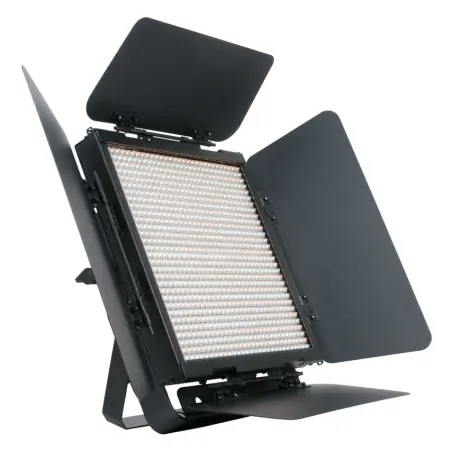

Elation Lighting TVL 2000 II (Elation TVL2000 II)

The new improved TVL2000 II™ features a low heat high CRI dynamic LED array panel consisting of 450 warm white and 450 cool white LEDs, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, built-in magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and linkable power in/out connections, (4) button (2) dial LCD display control panel, 90W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

FEATURES
Low Heat High CRI Dynamic LED Array Panel
Variable Color Temperature Settings (3,200K - 6,500K)
Adjustable Barn Doors
Built-In Magnetic Gel/Diffuser Holder
Manual and DMX Controlled Color Temp and Dimming
Flicker Free Operation for Broadcast TV and FILM
Multiple Unit Power Linking

SOURCE
(450) Warm White + (450) Cool White LEDs

PHOTOMETRIC DATA
750 LUX 70 FC @6.6’ (2M) (30° Warm White 3,200K)
1300 LUX 121 FC @6.6’ (2M) (30° Cool White 6,500K)
2000 LUX 186 FC @6.6’ (2M) (30° Full On 4,500-5,000K)

EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)

CONTROL / CONNECTIONS
(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming
(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Linkable Power In/Out

SIZE / WEIGHT
Length: 14.8” (376mm)
Width: 13.3” (337mm)
Vertical Height: 4.4” (113mm)
Weight: 15.0 lbs. (6.8 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
90W Max Power Consumption

APPROVALS / RATINGS
CE Approved
cETLus Approved
RoHs Compliant
IP20 Rated

INSTALLATION
Rigging: Clamp or Stand (Not Included)
Working Position: Any (360°)

INCLUDED ITEMS
90° Dual /Yoke Bracket
Power Cable
