This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

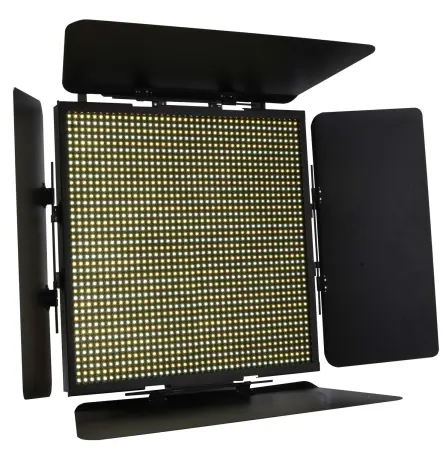

Elation Lighting TVL 4000 II (Elation TVL4000 II)
The new improved TVL4000 II™ features a low heat, >90CRI, dynamic LED array panel consisting of 800 warm white and 800 cool white LEDs, 30° beam angle, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and power in connections, (4) button (2) dial LCD display control panel, 160W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
Low Heat, >90CRI Dynamic LED Array Panel
30° Beam Angle
Variable Color Temperature Settings (3,200K - 6,500K)
Adjustable Barn Doors
Magnetic Gel/Diffuser Holder
Manual and DMX Controlled Color Temp and Dimming
Flicker Free Operation for Broadcast TV and FILM
SOURCE
(800) Warm White + (800) Cool White LEDs
PHOTOMETRIC DATA
1500 LUX 139 FC @6.6’ (2M) (30° Warm White 3,200K)
1900 LUX 177 FC @6.6’ (2M) (30° Cool White 6,500K)
3400 LUX 316 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming
(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Power In
SIZE / WEIGHT
Length: 14.8” (376mm)
Width: 13.3” (337mm)
Vertical Height: 4.4” (113mm)
Weight: 15.0 lbs. (6.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
160W Max Power Consumption
TA: 40°C Max Ambient Temperature
APPROVALS / RATINGS
CE Approved
cETLus Approved
RoHs Compliant
INSTALLATION
Rigging: Clamp or Stand (Not Included)
Working Position: Any (360°)
INCLUDED ITEMS
180° Dual / Yoke Bracket
Power Cable
