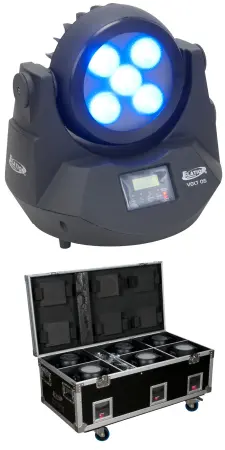

VOLTZ Q5E SIX PACK SKU# VOL106
Part of the VOLT Series

INCLUDED ITEMS
(6) Volt Q5E Units
(6) Omega Brackets
(1) Main Power Cable

Preliminary Specifications

The new Volt Q5E Six Pack™ charging road case includes (6) IP65 rated Volt Q5E™ units, each having (5) 10W QUAD color RGBW LEDs, 9° beam 17° field angles, 180°+ manual LED head positioning, variable color correction (2,700K - 7,200K), magnetic frost filter gel frame, electronic strobe and dimming, flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base, retractable carrying handle, an internal wireless EWDMX receiver, and powered by a rechargeable Lithium-Ion battery.


VOLT Q5E

FEATURES
IP65 Rated
9° Beam and 17° Field Angles
180°+ Manual LED Head Positioning
Variable Color Correction (2,700K - 7,200K)
Internal Wireless EWDMX Receiver
Rechargeable Lithium-Ion Battery
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Rubber Padded Base and Retractable Carrying Handle

SOURCE
(5) 10W QUAD Color RGBW LEDs
100,000 Hour Average Life

PHOTOMETRIC DATA
34,450 LUX 3,572 FC @3.3 ft (1m) (9° Full ON)

EFFECTS
Variable Color Correction (2,700K - 7,200K)
Magnetic Frost Filter Gel Frame
Electronic Strobe and Dimming
Multiple Color and Chase Macros

CONTROL / CONNECTIONS
(4) DMX Channel Modes (4 / 5 / 7 / 9)
Internal Wireless EWDMX Receiver
(4) Button Control Panel
LCD Menu Display
3pin IP DMX In/Out
2pin IP Power Charger In

SIZE / WEIGHT (single unit)
Length: 11.4” (290mm)
Width: 5.5” (252mm)
Vertical Height: 11.4” (289mm)
Weight: 15.0 lbs. (6.8 kg)

ELECTRICAL / THERMAL
DC 22-26.2V
65W Max Power Consumption (each unit)
14°F to 113°F (-10°C to 45°C)

INSTALLATION
Rigging: Clamps (Not Included) / Floor
Working Position: Any (360°)


VOLT Q5™ CHARGING ROAD CASE

FEATURES
Charges (6) Volt Q5™ Units
Charge Status Windows for each unit

SIZE / WEIGHT (loaded case with 6 units)
Length: 44.0” (1118mm)
Width: 22.0” (560mm)
Vertical Height: 16.0” (406mm)
Loaded Weight: 240.0 lbs. (109 kg)

ELECTRICAL / THERMAL

Max Power Consumption: pending
14°F to 113°F (-10°C to 45°C)
