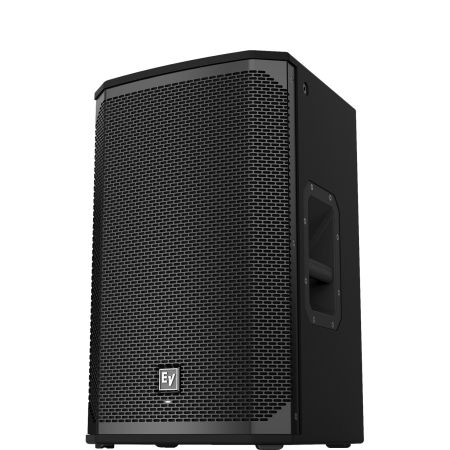

12-Inch Two Way Passive Loudspeaker
EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.
Axial Sensitivity (SPL, 1 W @ 1 m) 95 dB
Connector Type Dual NL4
Coverage (Nominal -6 dB) H 90 °
Crossover Frequency 1.6 k Hz
Enclosure Material 15 mm, plywood with EVCoat
Frequency Response (-10 dB) 55 Hz - 20 k Hz Full Space Measurement
Frequency Response (-3 dB) 82 Hz - 18 k Hz Full Space Measurement
Grill 18 AWG steel with powdercoat
HF Transducer DH-1M 1-inch titanium compression driver
LF Transducer EVS-12M 300 mm (12 in)
Maximum SPL 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Minimum Impedance 7.5 Ω
Nominal Impedance 8 Ω
Power Handling (Continuous / Peak) 350 W/1400 W
Recommended High-Pass Frequency 55 Hz
Shipping Weight 21.4 kg (47.18 lbs)
Suspension (8) M10 threaded mounting points
Height 14RU 607 mm (23.9")
Width 375 mm (14.76")
Depth 356 mm (14.02")
Weight Net 17.4 kg (38.36 lbs)
