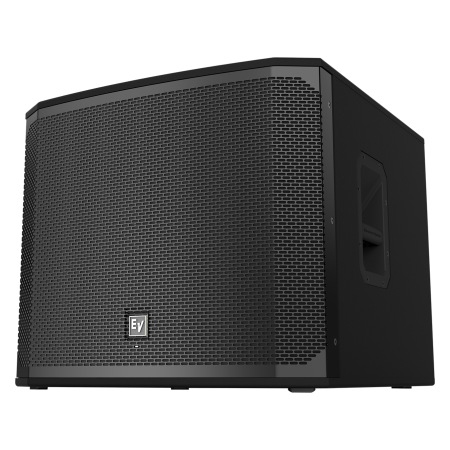

18-Inch Passive Subwoofer
1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing highsensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Metal grille reinforcement bar (two bars on the EKX-18S).
M20 threaded pole mount plate.
Axial Sensitivity (SPL, 1 W @ 1 m) 96 dB
Connector Type Dual NL4
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
Enclosure Material 15 mm, plywood with EVCoat
Frequency Response (-10 dB) 35 Hz - 300 Hz Half Space Measurement
Frequency Response (-3 dB) 50 Hz - 100 Hz Half Space Measurement
Grill 18 AWG steel with powdercoat
LF Transducer EVS-18C 457 mm (18 in)
Maximum SPL 134 dB
Minimum Impedance 7 Ω
Nominal Impedance 8 Ω
Power Handling (Continuous / Peak) 400 W/1600 W
Recommended High-Pass Frequency 30 Hz
Shipping Weight 40.1 kg (88.41 lbs)
Height 12RU 520 mm (20.47")
Width 606 mm (23.86")
Depth 612 mm (24.09")
Weight Net 31.8 kg (70.11 lbs)
