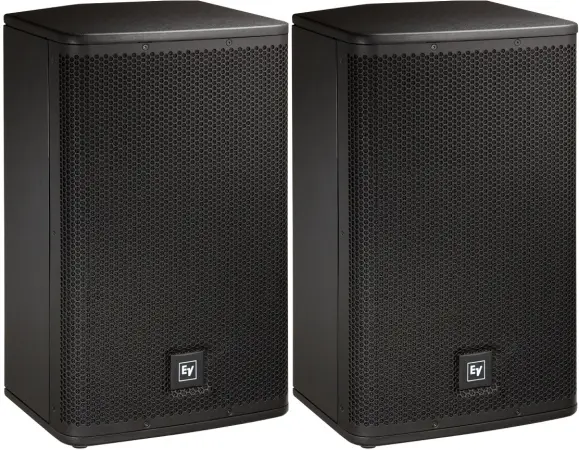

2x EV ELX115P (Electro-Voice LiveX ELX-115P) [pair]
A powerful step up from the ELX112P, the 15” woofer and 1000 W amplifier in the ELX115P deliver extended lower frequencies and room-filling volume.
Designed for
House of Worship, Pro Music, and other applications.
15” woofer and 1.5” high-frequency titanium compression driver
44 Hz – 20 kHz frequency range; 134 dB max SPL
1000 W Class D lightweight amplifier — runs cool without fans
Easy to connect and control with versatile input and output options
Rugged wood cabinet — pole mounts or stacks with Live X Subwoofers
EV ELX-115P
Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Frequency Response (-3 dB) 56 Hz - 18 k Hz
Frequency Response (-10 dB) 44 Hz - 20 k Hz
Max. SPL/1m (calc) 134 dB
Coverage
(Nominal -6 dB) H° 90 °
Coverage
(Nominal -6 dB) V° 50 °
LF Transducer (1) EVS-15K, 381mm (15”) Woofer
HF Transducer DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver
Crossover Frequency 1.7 k Hz
Connector Type (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output
Grill 18GA Steel with Black Powdercoat
Height 708 mm (27.87")
Width 432 mm (17.01")
Depth 382 mm (15.04")
Weight Net 24.3 kg (53.57 lbs)
Shipping Weight 29.5 kg (65.04 lbs)
About EV's LiveX Series:
Engineering
Speakers built to meet exacting Electro-Voice power-handling specs
Electro-Voice-engineered high-frequency titanium compression drivers
700-W and 1000-W Class-D high-efficiency amplifiers run cool without fans
Design
Rugged solid wood construction
Stylish design says "serious gear" on any stage
Designed to pole-mount or stack with Live X subwoofers
Easy to connect and control with versatile input and output options
Lightweight materials, balanced design, and ergonomic handles for convenient
transport, setup, and load-out
Performance
Best-in-class SPL output across all component configurations
Best-in-class frequency response across powered and passive models
Best-in-class power-handling and sensitivity specs across passive models
