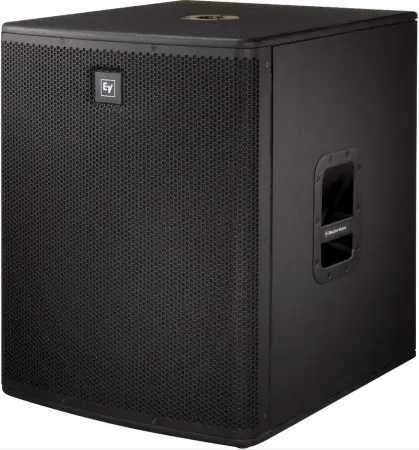

EV ELX118 (Electro-Voice LiveX ELX-118)

Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.

Designed for House of Worship, Pro Music, and other applications.
18” woofer provides extended low-frequency output
32 Hz – 200 kHz frequency range 96 dB SPL sensitivity; 134 dB max SPL
400 W continuous and 1600 W peak power handling
Rugged wood cabinet—supports pole-mounted or stacked Live Loudspeakers

EV ELX-118
Axial Sensitivity 96 dB
Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Frequency Response (-3 dB) 50 Hz - 100 Hz Hz
Frequency Response (-10 dB) 35 Hz - 200 Hz Hz
Recommended High-Pass Frequency 30 Hz
Max. SPL/1m (calc) 134 dB
Coverage
(Nominal -6 dB) H° Omnidirectional °
Coverage
(Nominal -6 dB) V° Omnidirectional °
LF Transducer (1) EVS-18K, 457mm (18”) Woofer
HF Transducer N/A
Crossover Frequency N/A Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6.7 Ω
Connector Type Dual NL4
Grill 18GA Steel with Black Powdercoat
Height 661 mm (26.02")
Width 507 mm (19.96")
Depth 574 mm (22.6")
Weight Net 31.8 kg (70.11 lbs)
Shipping Weight 35.4 kg (78.04 lbs)

About EV's LiveX Series:

Engineering
Speakers built to meet exacting Electro-Voice power-handling specs
Electro-Voice-engineered high-frequency titanium compression drivers

Design
Rugged solid wood construction
Stylish design says "serious gear" on any stage
Designed to pole-mount or stack with Live X subwoofers
Easy to connect and control with versatile input and output options
Lightweight materials, balanced design, and ergonomic handles for convenient transport, setup, and load-out

Performance
Best-in-class SPL output across all component configurations
Best-in-class frequency response across powered and passive models
Best-in-class power-handling and sensitivity specs across passive models
