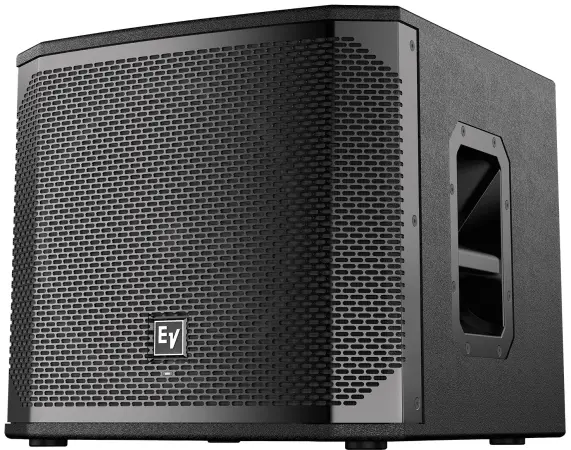

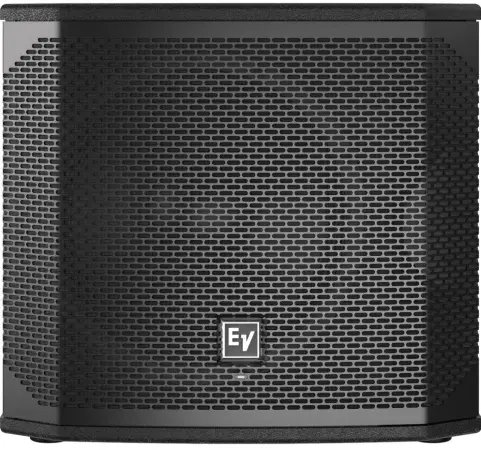

EV ELX200-12SP (EV ELX200 12" Subwoofer)
12-INCH POWERED SUBWOOFER
EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth® is available in select countries.
QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
The EV ELX200-12SP 12" subwoofer features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall)
settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. EV ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered EV ELX200-12SP loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.
EV ELX200-12SP 12" Subwoofer Specifications:
Available Color Black

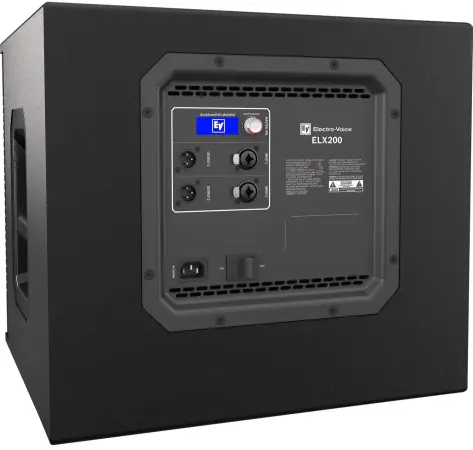

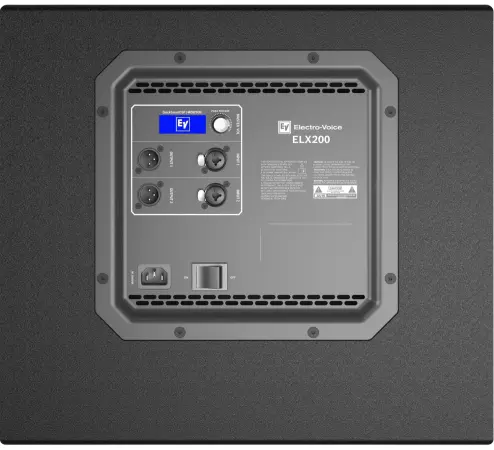

Connector Type (2) XLR/TRS combo jacks and (2) XLR link outputs
Depth 457 mm
Enclosure Material 15 mm plywood with EVCoat
Frequency Range (-10 dB) 41 Hz – 165 Hz
Frequency Response (-3 dB) 49 Hz – 135 Hz Hz
Grill 18 AWG steel with powdercoat
Height 397 mm
LF Transducer EVS-12L 300 mm (12 in)
Low Pass Frequency Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz
Max. SPL/1m (calc) 129 dB
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.8A
Power Rating 1200 W
Powered or Passive Powered
Shipping Weight 22.3 kg
Speaker Type Subwoofer
Weight Net 19.1 kg
Width 445 mm
Woofer Size 12 inch
