This product has been discontinued by the manufacturer. Please contact us to find a replacement.

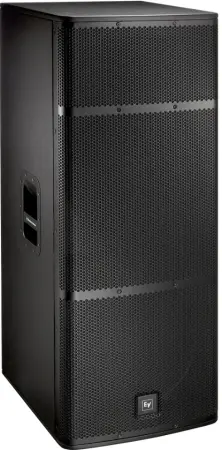

EV ELX215 (Electro-Voice LiveX ELX-215)
This twin woofer configuration delivers real low-end punch — ideal for applications that demand high-volume output and an ultra-wide frequency response from a single cabinet.
Designed for
House of Worship, Pro Music, and other applications.
Dual 15” woofers and a 1.5” high-frequency titanium compression driver
38 Hz – 20 kHz frequency range
96 dB SPL sensitivity; 137 dB max SPL
600 W continuous and 2400 W peak power handling
Rugged wood cabinet creates serious stage presence
EV ELX-215
Axial Sensitivity 96 dB
Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Frequency Response (-3 dB) 62 Hz - 18 k Hz
Frequency Response (-10 dB) 38 Hz - 20 k Hz
Recommended High-Pass Frequency 35 Hz
Max. SPL/1m (calc) 137 dB
Coverage
(Nominal -6 dB) H° 90 °
Coverage
(Nominal -6 dB) V° 50 °
LF Transducer (2) EVS-15K, 381mm (15”) Woofers
HF Transducer DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver
Crossover Frequency 1.7 k Hz
Nominal Impedance (Passive) 4 Ω
Minimum Impedance 3.7 Ω
Connector Type Dual NL4
Grill 18GA Steel with Black Powdercoat
Height 1154 mm (45.43")
Width 432 mm (17.01")
Depth 501 mm (19.72")
Weight Net 44.1 kg (97.22 lbs)
Shipping Weight 52 kg (114.64 lbs)
About EV's LiveX Series:
Engineering
Speakers built to meet exacting Electro-Voice power-handling specs
Electro-Voice-engineered high-frequency titanium compression drivers
Design
Rugged solid wood construction
Stylish design says "serious gear" on any stage
Designed to pole-mount or stack with Live X subwoofers
Easy to connect and control with versatile input and output options
Lightweight materials, balanced design, and ergonomic handles for convenient
transport, setup, and load-out
Performance
Best-in-class SPL output across all component configurations
Best-in-class frequency response across powered and passive models
Best-in-class power-handling and sensitivity specs across passive models
