For Portable, Wireless Sound Setups
Eight 3.5" Neodymium Drivers
Freq Response (with Sub): 43 Hz - 20 kHz
Custom Waveguides for Wide Coverage
Horizontal / Vertical Dispersion: 120° / 40°
Powered by EVOLVE 50 Active Subwoofer
500W of Class-D Amplification
Magnetically Locking Mounting Pole
Pole Includes Wire Assembly
Includes Carry Bag
Bluetooth connectivity, portability and up to 1,000W of peak output.
This highly portable, column-style PA system delivers an uncompromising combination of low-profile aesthetics and superior audio performance. Designed for quick and easy assembly, the EVOLVE 50 delivers up to 1,000 watts of room-filling sound virtually anywhere you need it. The symmetrical aluminum subwoofer pole with an integrated wire assembly makes setup a breeze, while a magnetic assist latch securely locks the sub pole in place.
The full-range column array of eight 3.5 in. neodymium drivers are directed using custom-designed waveguides for consistent 120° coverage. Providing the low-end punch for the EVOLVE 50 is a 12 in. ferrite woofer, which is housed in a ported, wooden subwoofer enclosure for optimal acoustic performance. A Class-D amplifier provides up to 1,000 watts of peak output power, distributing 500W to the subwoofer and 500W to the column array.
The input panel features EV’s industry-leading QuickSmartDSP interface—allowing intuitive navigation of system parameters via an LCD with single-knob control—as well as multiple options for signal routing and inputs.
The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High-resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.
Electro-Voice quality and testing procedures far exceed the industry norm to yield efficient and effective electro-acoustic performance. The result is the creation of components that deliver an accurate, linear response at the system’s highest output levels. When applied to EVOLVE 50, this engineering philosophy results in a system that brings a new sonic benchmark to the column speaker segment, all packaged in a sleek and portable enclosure that blends into the background in any application from a classy lounge to a wedding reception.

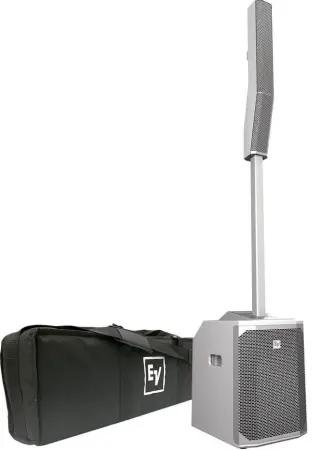

The white Electro-Voice EVOLVE 50 Portable PA Column Array is part of the EVOLVE 50 portable PA system, which consists of a powered subwoofer, magnetic speaker pole, and the column array. The column array utilizes eight 3.5" neodymium drivers with a custom-designed waveguide, which provides consistent (120°) horizontal coverage. The column speaker array is powered by the subwoofer's integrated 1000W amplifier, which delivers 500W to the column array.
System setup is simple and fast. Slide the magnetically locking mounting pole into the appropriate hole on top of the subwoofer, then place the column speaker array on the pole. You don't have to run cables between the sub and speaker array; audio connectivity between them is made via internal cabling in the mounting pole. The column array ships with the sub pole and a carrying case.
Ultra-wide 120° horizontal coverage via custom-designed waveguides and array-formed 40° asymmetrical vertical coverage means all acoustical energy is directed towards both sitting and standing audiences.
Ideal for portable applications. Lightweight and intuitive assembly via the magnet assisted sub pole make a quality performance easier than ever.
Frequency Response Column array and subwoofer
Frequency Response (-3 dB): 43 Hz to 20 kHz
Frequency Range Column array and subwoofer
Frequency Range (-10 dB): 37 Hz to 20 kHz
Maximum SPL Column Array and Subwoofer: 127 dB
Coverage Coverage (H x V): 120° x 40°
Amplifier Powered Subwoofer: 1000 W total output
HF Channel Rating: 500 W
Material of Construction Column: Composite
Pole: Aluminum
Grille Steel with black powder coat
Color White
Dimensions (H x W x D) Column: 32.5 x 4.0 x 6.9" / 82.6 x 10.2 x 17.5 cm
Pole: 36.6 x 1.9 x 2.2" / 93.0 x 4.8 x 5.6 cm
Weight Column: 10.3 lb / 4.7 kg
Pole: 2.8 lb / 1.2 kg
Bag for Column and Pole: 1.9 lb / 0.8 kg
Packaging Info
Package Weight 19.0 lb
Box Dimensions (LxWxH) 38.75 x 11.7 x 6.7"
