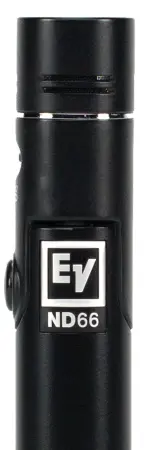

EV ND66
Condenser Cardioid Instrument Microphone

A versatile small-diaphragm condenser with a locking pivoting head. Ideal for drum overheads, hi-hats, close-miked drums, acoustic guitar and piano. Order this condenser instrument microphone today!

EV ND66 Features:

Premium small-diaphragm condenser element
Self-biased condenser element is vividly responsive to sound sources that need a mic which translates transient details very well
Clean, crisp and detailed condenser sound
Captures all details of percussive and stringed instruments
Easy mic placement with locking pivoting head
Achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock
Selectable -10 and -20 dB pads
Provides the necessary gain reduction to prevent the mic element from overloading
Selectable 75 Hz and 150 Hz high-pass filters
Selectable HPF frequencies are strategically chosen to eliminate bothersome low frequencies from the signal path

EV ND66 Specifications:

Audio Frequency Response 50 – 20,000
Case Material Die cast zinc
Connector Type 3-pin XLR
Diameter (Max) 0.83" (21 mm)
Element Condenser
Finish Black polyurethane paint
Impedance, Low-Z balanced 200 Ω
Maximum SPL 146 dB
Mic Type Instrument
Open Circuit Voltage 10 mV/Pascal
Polar Pattern Cardioid
Power Requirement 48 VDC Phantom
Shipping Weight 16.4 oz (465 g)
Wired/Wireless Wired
Height 5.63" (143 mm)
Weight Net 6.31 oz (179 g)

Electro Voice ND-66 (Electro-Voice ND 66)
