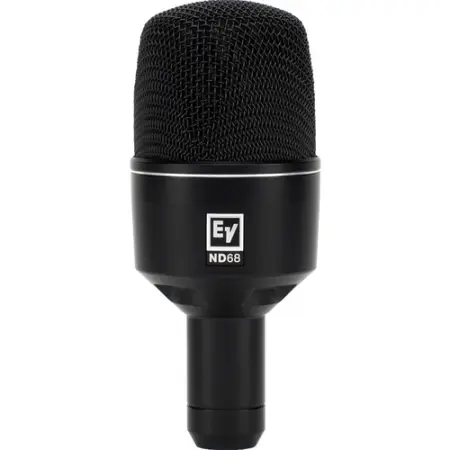

ND68
Dynamic Supercardioid Bass Drum Microphone

Voiced to deliver a powerful kick drum sound with little or no additional EQ’ing required. Also highly effective when used on other bass instruments.

Features:

Excellent acoustic isolation
With deep lows and top-end punctuation
Large-diaphragm dynamic capsule
Creates a rich and detailed frequency response
Extremely high SPL handling capability
Manages close miking of high SPL transients and RMS wave fronts up to 144 dB SPL
Humbucking coil guards against line hum
Use with confidence near speaker cabinets and EMF-generating equipment racks
Memraflex grille resists denting
Durable tight-mesh grilles withstand extraordinarily rough treatment


Specifications:

Audio Frequency Response 20 – 11,000
Case Material Die cast zinc
Connector Type 3-pin XLR
Diameter (Max) 2.39" (60.8 mm)
Element Dynamic
Finish Black polyurethane paint
Impedance, Low-Z balanced 150 Ω
Maximum SPL > 140 dB
Mic Type Instrument
Open Circuit Voltage 0.8 mV/Pascal
Polar Pattern Supercardioid
Power Requirement Passive
Shipping Weight 24.8 oz (703 g)
Wired/Wireless Wired
Height 5.63" (143 mm)
Weight Net 13.19 oz (374 g)

Electro Voice ND-68 (Electro-Voice ND 68)
