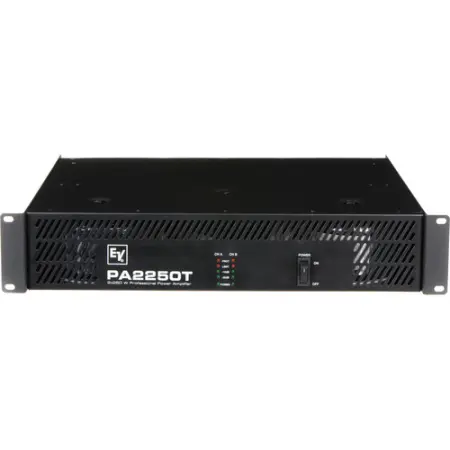

Electro-Voice PA2250 T (EV PA-2250T)

Dual 250 W per channel power amplifier

Efficient performance for low impedance or distributed systems
Ideal for sound reinforcement, paging, and life safety
250 W per channel for 4 Ω or 70/100 V lines
Bridged mono out for 540 W into 8 Ω
Compact 2 RU design
Stepped rear-panel level attenuation
Selectable 50 Hz or 300 Hz high-pass filter
Thermal protection, peak limiting, turn-on delay
Phoenix-type inputs and outputs
Three-stage front-to-rear fans
Integrated rack ears for direct mounting

Amplifier Gain 34.3 dB
Continuous Rated Power (1 kHz, THD 1%) 100v 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 4Ω 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 70v 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 8Ω 135 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 100v 250 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω 250 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 70v 250 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω 125 Watts
Crosstalk < < -75 dB
DIM 30 < 0.1 %
Frequency Response 65Hz - 40kHz
Impedance 4/8 Ω 70V/100V
Input Impedance (Balanced) > 20 kΩ
Input Sensitivity 0 dBu (775mV) @ rated output power or voltage, 1kHz
Intermodulation Distortion (SMPTE) < 0.1 %
Network Control (IRIS-Net) No
Number of Channels 2
Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz 250/125 W 70V/100V-250
Rated output power (*rated load) THD < 1%, 1kHz 270/135 W 70V/100V-270
Signal-to-Noise Ratio (A-weighted) 103 dB
Slew Rate 18 V/µs 70V-41, 100V-61
Total Harmonic Distortion < 0.1 %
Height 2RU 88 mm (3.46")
Width 483 mm (19.02")
Depth 406 mm (15.98")
Weight Net 23.5 kg (51.81 lbs)
