Product Description

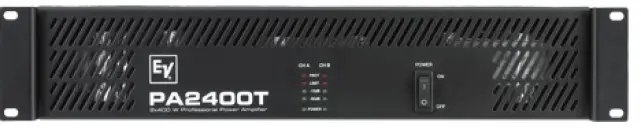

EV PA2400T (Electro-Voice PA-2400 T)

Dual 400 W per channel power amplifier

Efficient performance for low impedance or distributed systems
Ideal for sound reinforcement, paging, and life safety
400 W per channel for 4 Ω or 70/100 V lines
Bridged mono out for 860 W into 8 Ω
Compact 2 RU design
Stepped rear-panel level attenuation
Selectable 50 Hz or 300 Hz high-pass filter
Thermal protection, peak limiting, turn-on delay
Phoenix-type inputs and outputs
Three-stage front-to-rear fans
Integrated rack ears for direct mounting

Amplifier Gaintd> 34 dB
Continuous Rated Power (1 kHz,&n THD 1%) 100v 430 Wattstd>
Continuous Rated Power (1 kHz,&n THD 1%) 4Ω 430 Watts
Continuous Rated Power (1 kHz, THD 1%) 70v 430 Watts
Continuous Rated Power (1 kHz, THD 1%) 8Ω 215 Watts
Continuous Rated Power (20-20 kHz,THD<0,2%) 100v 400 Watts
Continuous Rated Power (20-20 kHz,THD<0,2%) 4Ω 400 Watts
Continuous Rated Power (20-20 kHz,THD<0,2%) 70v 400 Watts
Continuous Rated Power (20-20 kHz,THD<0,2%) 8Ω 200 Wattstd>
Crosstalk < < -75 dB
DIM 30 < 0.1 %
Frequency Response 65Hz - 40kHz -1dB, ref. 1kHz
Impedance 4/8 Ω 70V/100V
InInput Impedance (Balanced) > 20 kΩ
Input Sensitivity 0 dBu (775mV) @ rated output power or voltage, 1kHz
Intermodulation Distortion (SMPTE) < 0.1 %td>
Network Control (IRIS-Net) No
Number of Channels 2
Rated output power (*rated load)&n THD < 0.2%, 20Hz – 20kHz 400/200 W 70V/100V-400
Rated output power (*rated load) THD < 1%, 1kcronym title="Hertz" style="-webkit-transition: all 0.25s; transition: all 0.25s;">Hz 430/215 W 70V/100V-430
Signal-to-Noise Ratio (A-weighted) 103 dB
Slew Rate 25 V/µs 70V-46, 100V-65
Total Harmonic Distortion < 0.1 %
Height 2RU 88 mm (3.46")
Width 483 mm (19.02")
Depth 406 mm (15.98")
Weight Net 26 kg (57.32 lbs)
