Electro-Voice Q1212
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

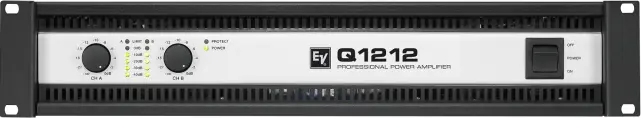

Electro-Voice Q1212 (EV Q 1212)
Dependable, high-output power.
With 2 x 1200 W @ 4 Ohms and 2 x 1800 W @ 2 Ohms, the Q1212 offers the horsepower to challenge the legendary P3000. It provides the same power from a 2 RU chassis at modest weight, making it a perfect subwoofer or high-power top drive for Phoenix, Tour X and Zx3/Zx5 systems or system combinations
Designed for Club Sound, Concert Sound, House of Worship, Performance &
Sports Venues, Pro Music, and other applications.
Up to 2 x 2400 W into 2 ohms
XLR pass-though input connections
The NL4 connection on output A also carries output B on pins +/- 2 to allow easy
connection to bi-amped loudspeakers
Switchable LPN filter extra tonal fundamentals and “kick” with a protective
low-cut for 12” or 15” loudspeakers without additional subwoofers
Class-H design
Three-stage front-to-rear fans
Complete protection package
Classic EV amplifier dynamic headroom for real-world music and applications
Built-in dynamic limiters
| Amplifier Gain | 32 dB | |
|
Continuous Rated Power (1 kHz,&n THD 1%) 2Ω |
1800 Watts | |
|
Continuous Rated Power (1 kHz, THD 1%) 4Ω |
1200 Watts | |
|
Continuous Rated Power (1 kHz,&n THD 1%) 8Ω |
750 Watts | |
|
Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω |
1100 Watts | |
|
Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω |
550 Watts | |
| Cooling | Front-to-Rear, 3-stage fans | |
| DIM 30 | 0.05 % | |
| Electronics Type | Amplifier | |
| Frequency Response | 10 Hz - 40 kHz | |
| InInput Impedance (Balanced) | 20 kΩ | |
| Input Sensitivitytd> | +6.6 dBu | |
| Intermodulation Distortion (SMPTE) | 0.1 % | |
| Mains Voltage | 100 V, 120 V, 230 V or 240 V; 50-60 Hz (factory configured) | |
| Maximum Bridged Output 4Ω | 3600 Watts | |
| Maximum Bridged Output 8Ω | 2400 Watts | |
| Maximum Input Voltage | +21 dBu (8.69 Vrms) | |
| Network Control (IRIS-Net) | No | |
| Signal-to-Noise Ratio (A-weighted) | 110 dB | |
| Slew Rate | 30 V/µs | |
| Height | 2RU 88.1 mm (3.47") | |
| Width | 483 mm (19.02") | |
| Depth | 421.5 mm (16.59") | |
| Weight Net | 17.7 kg (39.02 lbs) |
EV Q1212<br /> The EV Q series amps are Class H rail switching. This means the amplifier pulls less power at lower volume and generates less heat than A/B amps of the same power. The XLR balanced inputs with pass through outputs along with Speakon connectors that are wired for biamp speakers shows that this is an amp for a serious pro. In addition the protection package includes sophisticated circuits against overheating, short circuit, DC output voltage, HF oscillation, back EMF (Electromotive Force), and destructive peak current.
