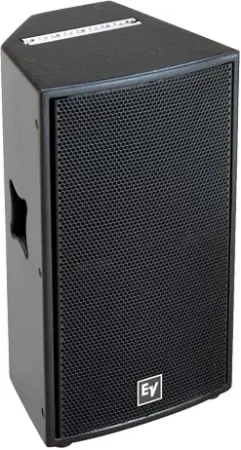

Electro-Voice QRx 112/75
- DISCONTINUED

EV QRx 112/75 (Electro-Voice QRX112-75)

The QRx 112/75 is a 12“, two-way, full-range loudspeaker system with 300-watt continuous power handling (1200-watt peak) An asymmetrical horn with 15 degree downward bias minimizes the need for pullback.

Designed for Club Sound, Concert Sound, House of Worship, Pro Music, and other applications.
2-Way High-Output Full-range
High Sensitivity
Ultra-linear frequency response
Solid bass down to 52 Hz (-10 dB)
Vented LF enclosure
Asymmetric CD-horn aimed downward by 10°
3” voice coil (titanium diaphragm)
Protection circuits for HF-driver and LF-woofer
Easy external operation mode selection
5-side multi-angled housing with monitor slant

Chassis Size 304.8 mm (12")
Color Black
Color Unfinished
Color White
Input Connections Parallel Neutrik® NL4
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Speaker Type Wedges
Frequency Response (-3 dB) 75 - 18000 Hz
Frequency Response (-10 dB) 52 - 18000 Hz
Internal Crossover No
Internal Crossover Yes
Sensitivity 1 W/1 m 98 dB
Max. SPL/1m (calc) 131 dB
Coverage
(Nominal -6 dB) H° 75 °
Coverage
(Nominal -6 dB) V° 50 °
Rotatable Horn Yes
System Power Handling (Continuous/Program/Peak) 300 Watts
LF Transducer DL12BFH
Low Frequency Power Handling (Continuous/Program/Peak) 300 Watts
High Frequency Power Handling (Continuous/Program/Peak) 75 Watts
LF Nominal Impedance 8 Ω
HF Transducer DH-7
HF Nominal Impedance 8 Ω
Nominal Impedance (Passive) 8 Ω
Flying Yes
Outdoor No
Height 675 mm (26.57")
Width 390 mm (15.35")
Depth 372 mm (14.65")
Weight Net 26 kg (57.32 lbs)
