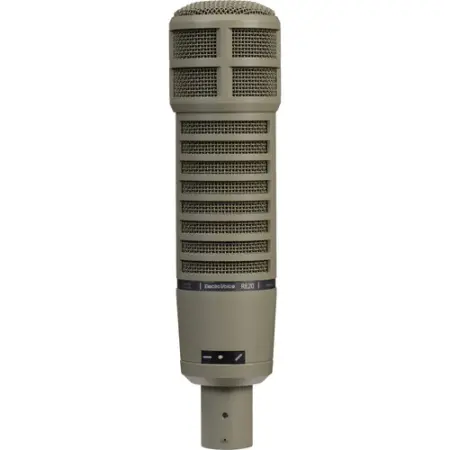

RE20
Broadcast Announcer Microphone w/ Variable‑D

Features:

Variable-D™ for minimal proximity effect
True cardioid with no coloration at 180-degrees off-axis
Voice tailored frequency response
Studio condenser-like performance
Large diaphragm
Humbucking coil
Bass roll-off switch

The RE20 dynamic cardioid microphone is truly an industry standard, a firm favorite among broadcasters and sound engineers worldwide. Its popularity also extends into music production as a premium grade instrument microphone. Its Variable-D™ design and heavy-duty internal pop filter excel for close-in voice work, while an internal element shock-mount reduces vibration-induced noise.

SPECIFICATIONS:

Element Type: Dynamic
Frequency Response: 45 Hz - 18,000 Hz
Polar Pattern: Cardioid
Impedance: 150 ohms balanced
Sensitivity, Open Circuit Voltage, 1 kHz: 1.5 mV/pascal
Hum Pickup Level, typical (60 Hz/1 millioersted field): -130 dBm
Polarity: Pin 2 will be positive referenced to Pin 3 with positive pressure on diaprhagm
Case Material: Steel
Finish: Fawn beige
Dimensions: Length = 8.53" (216.7 mm) Widest Diameter = 2.14" (54.4 mm) Body Diameter = 1.94" (49.2 mm)
Net Weight: 1 lb, 10 oz (737 g)
Shipping Weight: 3 lb, 4 oz (1474 g)
Accessories Included: 81715 stand clamp
Optional Accessories: 309A shock-mounted stand adapter for use with floor stand or recording boom

EV RE20 (Electro-Voice RE-20)
