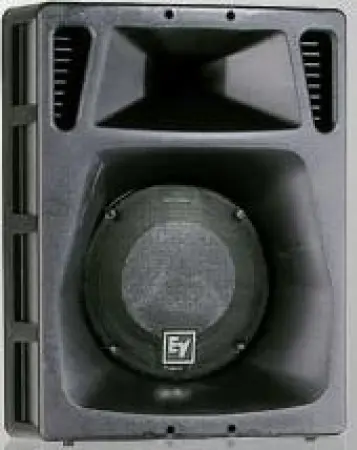

Electro-Voice SX500+

Electro-Voice SX500+ (EV SX 500 Plus)

Sx/Sb Series Speaker System

The Sx500+ is a two-way, 15-inch, full-range system with 400-watt continuous - and 1,600-watt peak - power handling. With a DL15SX 15-inch woofer and large enclosure volume, the Sx500+ extends and increases bass output. The system features an asymmetric 75 degree x 60 degree Constant Directivity, high-frequency horn that aims down 10 degrees  to help direct sound at the audience when the system is vertically stand-mounted. The horn-loaded woofer can control the coverage pattern down to an unheard of 500 Hz for higher vocal intelligibility and musical clarity. The Sx500+ also provides more bass punch at greater distances than conventional front-loaded woofers

Key Features:
Biampable
Suspension points to accommodate optional Mb700 set of three forged eyebolts
Mb600 and horizontal array kits available for side-by-side arraying of two systems (requires one Mb500 wall and ceiling bracket per speaker).

Specifications

Frequency Response (-10dB) 43 - 20000 Hz
Recommended High-Pass Frequency 45 Hz
Sensitivity 1W/1m 99 dB
MaMax. SPL / 1m (calc) 130 dB
Coverage (nominal -6dB) H? 75 ?
Coverage (nominal -6dB) V? 60 ?
Rotatable Horn No
System Power Handling (continuous/program/peak) 400/800/1600 Watts
LF Transducer DLDL15ST
HF Transducer DH2T
Crossover Frequency 1600 Hz
Nominal Impedance (Passive) 8 Ohms
Minimum Impedance 5.2 Ohms
Color Black
Directivity Index 15.2 dB
Flying Yes
Input Connections Four-pin Speakon (2)
Outdoor No
Chassis Size 15 inches
Internal Crossover Selectable
Speaker Type Fullrange, Two-Way
Weight Nettd> 3131.3 kg ( 69 lbs )
Dimensions (HxWxD) 838 x 673 x 448 mmr> (32.99" x 26.5" x 17.64")
