Product Description

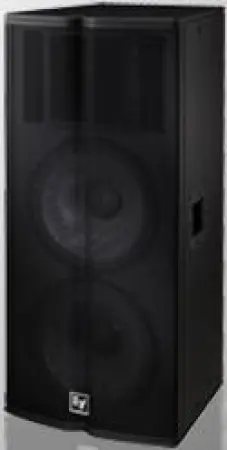

Electro-Voice TX2152 (EV TX 2152)

Dual 15-inch Two-way Fullrange

The Electro-Voice TX2152 excels where all other dual, 15-inch loudspeakers fail - transient detail. The secret to the TX2152 is its combination of dual, SMX2150 low-distortion woofers with an integrated analog crossover that uses elliptical filters to achieve 36 dB per octave slopes at the crossover frequency. The result is crossover performance that surpasses many electronic DSP devices and bi-amping.

To keep up with all this output, the TX2152 is the only Tour X model that employs the neodymium ND2 compression driver found in EV's small and medium size line arrays. The TX2152 also benefits from outstanding pattern control of the larger, rotateable, 60 degree x 40 degree horn. Its unique backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary, ergonomically correct handles and angled input panels, and six, .375-inch, threaded suspension inserts make the TX2152 easy to transport and employ in a variety of applications.

Specifications

Frequency Response (-3dB) 55 - 13000 Hz
Frequency Response (-10dB) 50 - 18000 Hz
Recommended High-Pass Frequency 40 Hz
Sensitivity 1W/1m 103 dB
MaMax. SPL / 1m (calc) 139 dB
Coverage (nominal -6dB) H? 60 ?
Coverage (nominal -6dB) V? 40 ?
Rotatable Horn Yes
System Power Handling (continuous/program/peak) 1000/2000/4000 Watts
LF Transducer (2(2) SMX2151
HF Transducer ND2
Crossover Frequency 1750 Hz
Nominal Impedance (Passive) 4 Ohms
Minimum Impedance 3.1 Ohms
Enclosure Material Plywood and MDF with EVCOAT
Suspension (6) 3/8-inch threaded inserts
Color Black
Flying Yes
Input Connections Parallel Neutrik? NL4
Internal Crossovertd> Yes
Speaker Type Fullrange
Weight Net 42.8 kg ( 94.36 lbs )
Dimensions (HxWxD) 1154 x 508 x 471 mm
(45.43" x 20" x 18.54")
