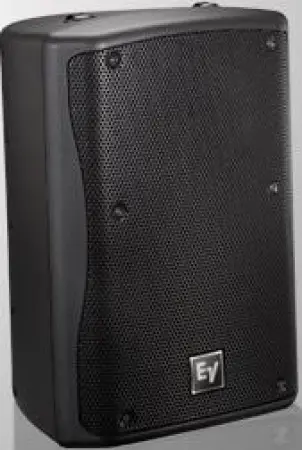

Electro-Voice ZX3 (EV ZX 3)
The New Generation in High Performance
The Electro-Voice? ZX3 offers an unprecedented level of lightweight,
12-inch, two-way, loudspeaker performance for the widest variety of portable
and installed applications. Featuring the new DVX3121 12-inch woofer and the
ND2 neodymium compression driver, the ZX3 continues the groundbreaking
innovation of the EV DVX woofer program, joining the ranks of EV's ZX series
between the eight-inch ZX1 and the 15-inch ZX5.
When it comes to problem and solution versatility, the ZX3 is in a class of
its own. In addition to the highest performance drivers available, a
complete range of optional accessories, including the CB-5 array kit, MB3
wall and ceiling-mount bracket, HA-3 handle adapter for use with the VSA-1
strong arm mount, and TCA-1 truss clamp adapter allow the ZX3 to be easily
and precisely configured in multiple box arrays, mounted on trusses or
tripods, deployed as monitors, or used as system mains with a subwoofer.
Housed in a stylish yet rugged injection molded enclosure, the ZX3 shares
the same functionality as the larger ZX5, with 90 degre x 50 degree or 60
degree x 60 degree horn dispersion patterns, 45 degree or 55 degree monitor
angles, passive or biamp operation, and seven M8 rigging points. The ZX3 is
available in a weatherized version and in either a black or white finish. An
optional HDC-3 heavy-duty stackable cover is also available.
Specifications
Frequency Response (-3dB) |
58 - 15000 Hz |
Frequency Response (-10dB) |
48 - 20000 Hz |
Sensitivity 1W/1m |
97 dB |
System Power Handling (continuous/program/peak) |
600/1200/2400 Watts |
Low Frequency Power Handling
(continuous/program/peak) |
500/1000/2000 Watts |
High Frequency Power Handling
(continuous/program/peak) |
40/80/160 Watts |
LF Transducer |
DVDVX3121 |
HF Transducer |
ND2 |
Enclosure Material |
Polypropylene |
Color |
Black
|
Color |
White
|
Outdoor |
Yes |
Speaker Type |
Fullrange |
Weight Nettd>
| 19.8 kg ( 43.65 lbs ) |
