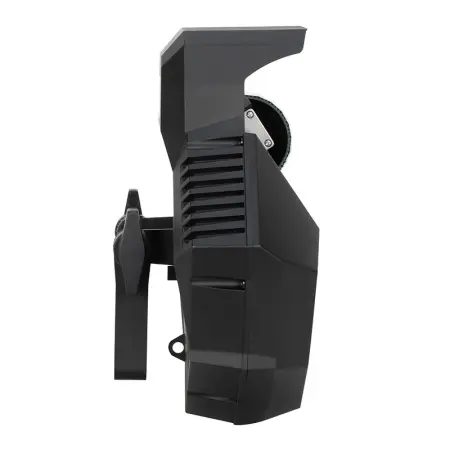

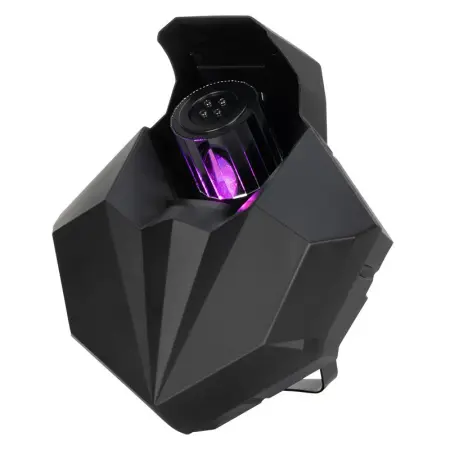

The Eliminator Vortex is a classic moonflower effect with a barrel mirrored scanner that produced multiple razor-sharp 5-degree beams of light powered by an 80W LED engine. It features 10 Color/GOBOs combinations, GOBO shake effect, mesmerizing strobe effects and has 6 built-in light shows.

The Vortex may be controlled by DMX, Remote Device Management (RDM), sound activation or in show mode from a 4-buttom control menu with a digital display. The quick barrel movements run 180-degrees on the X-axis and 260-degrees on the Y-axis. The beams may be focused from manual focusing knob.

A great effect for those who love fast moving scanner, the Vortex is compact and lightweight, making it a great effect for venues with low ceilings or tight spaces, bars, lounges, roller rinks, jump parks and fun centers.

SPECIFICATIONS:

Light Source:
• 80W White LED (50,000 Hrs.)

Barrel Mirror:
• Barrel Movement: X-Axis = 180°, Y-Axis 360°
• Beam Angle: Multiple Beams, 5° each
• Beam Focusing Knob

Colors/GOBOs:
• 10 Color / Gobo combinations
• Color/Gobo Shake

Control:
• 1-40Hz Strobe Rate
• 6 Built-In Light Shows
• Control: DMX512, RDM, Sound and Show Mode
• DMX Modes: 2 DMX Control Modes (10 & 12 Channels)

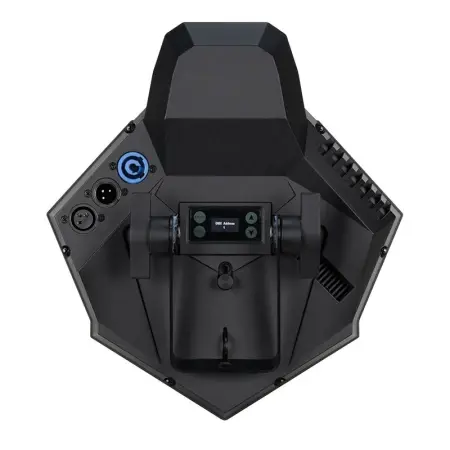

• 4-Button Digital Display

Connections:
• 3-pin DMX In/Out
• Indoor Locking power input
• Safety eye to attach a safety cable

Electrical:
• Power: 100-240VAC, 50/60HZ
• Power Consumption: 100W

Size / Weight:
• Dimensions (LxWxH): 12.3" x 11.11" x 6.2" (312x282x157mm)
• Weight: 7.1 lbs. (3.2Kg)

Approvals:
• CE and cETLus (Pending)
• IP20

Included:
• Adjustable Angle Hanging Bracket
• Power Cable

Eliminator Lighting Model Vortex (Eliminator Vortex Scanner)
