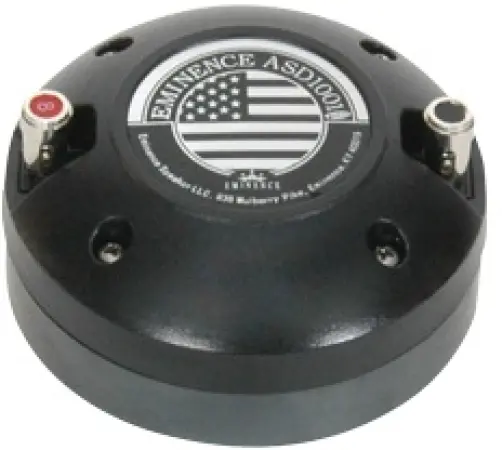

Eminence ASD1001 (Eminence ASD-1001)

High Frequency Driver

Specification
Throat Size 1", 25.4mm
Nominal Impedance* 8 ohms
Power Rating** 50W @ 2.5kHz
Free Air Resonace 1.23kHz
Usable Frequency Range 2.5Hz-20kHz
Sensitivity*** 104.3dB (1W/1m across 2.5kHz-20kHz)
Magnet Weight 12oz, 0.34kg
Voice Coil Diameter 1.3" / 33mm

Thiele & Small Parameters
DC Resistance (Re) 6.7
Coil Inductance (Le) 1.1mH

Mounting Info
Overall Diameter 3.5", 88.9mm
Mounting Holes Diameter ~
Mounting Holes B.C.D. ~
Mounting Thread 1 3/8" 18 NEF ext.
Depth 2.45", 62mm
Weight 2 lbs, 0.9 kg

Materials of Construction
Diaphragm Material Diamond Titanium
Magnet Composition Ferrite
