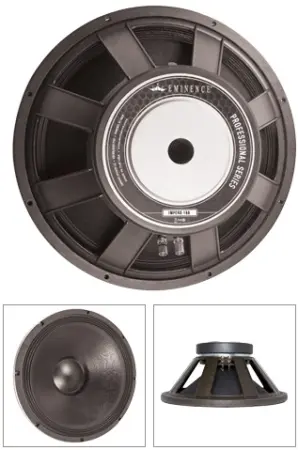

Eminence IMPERO 18A
High power driver recommended for pro audio in vented enclosures. Suited for
full-range three-way boxes, bass guitar boxes, and small subwoofers.
Specification
Nominal Basket Diameter 18", 457.2mm
Nominal Impedance* 8 ohms
Power Rating**
Watts 1200W
Music Program 2400W
Resonance 33.17Hz
Usable Frequency Range 39Hz - 0.82kHz
Sensitivity*** 95.9dB
Magnet Weight 109 oz.
Gap Height 0.5", 12.7mm
Voice Coil Diameter 4", 101.6mm
Thiele & Small Parameters
Resonant Frequency (fs) 33.17Hz
DC Resistance (Re) 5.41
Coil Inductance (Le) 1.47mH
Mechanical Q (Qms) 14.02
Electromagnetic Q (Qes) 0.44
Total Q (Qts) 0.43
Compliance Equivalent Volume (Vas) 317.02 liters / 11.19 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 927.2cc
Mechanical Compliance of Suspension (Cms) 0.17mm/N
BL Product (BL) 18.9 T-M
Diaphragm Mass Inc. Airload (MMs) 139.52 grams
Efficiency Bandwidth Product (EBP) 75.37
Maximum Linear Excursion (Xmax) 8mm
Surface Area of Cone (Sd) 1159 cm2
Maximum Mechanical Limit (Xlim) 20.1mm
Mounting Information
Recommended Enclosure Volume
Sealed N/a
Vented 113.2-277.5 liters / 4-9.8 cu.ft.
Driver Volume Displaced 409.6 cu.in. / 6.7 liters
Overall Diameter 18", 457.2mm
Baffle Hole Diameter 16.56", 420.62mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.29", 7.36mm
Mounting Holes B.C.D. 17.25", 438.15mm
Depth 8.31", 211.07mm
Net Weight 27.3 lbs, 12.3 kg
Shipping Weight 30.8 lbs, 13.9 kgs
Materials of Construction
Coil Construction Copper voice coil
Coil Former Fiberglass
Magnet Composition Ferrite magnet
Core Details Bumped Vented Extended core
Basket Materials Die-cast aluminum basket
Cone Composition Water Resistant Treated Paper Cone
Cone Edge Composition Treated Cloth cone edge
Dust Cap Composition Water Resistant Treated Paper dust cap
