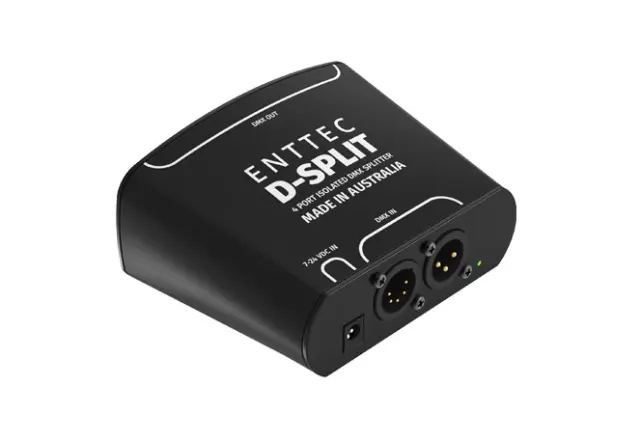

The D-SPLIT is a 1 to 4 DMX 512 splitter, allowing
you to send your signal in different directions or
to increase the number of fixtures that you can
send your signal to (DMX signal is limited to
running through 32 fixtures).
Run your DMX cable to the Male DMX Input (only
one input), the D-SPLIT will duplicate the signal on
each of the four outputs. The D-SPLIT outputs are
optically isolated, meaning that that it protects
against up to 1000V of stray voltage, protecting
your DMX controller and fixtures on the other DSPLIT outputs.
The D-SPLIT can provide more flexibility in
connecting DMX controlled devices. Instead of
having to make them all fit within a single daisy
chain, each of the four outputs from the D-SPLIT
can be the start of its own chain, and multiple DSPLITs can be linked together if needed.

FEATURES:

Lightweight and portable.
1 DMX input
Both SKU offer flexibility of 3-Pin and 5-Pin male
connector for connection to only 1 DMX input.

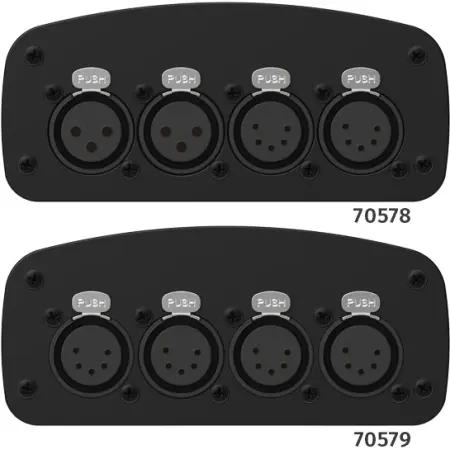

4 DMX outputs (choose between 2 SKU)
[70578] Two 5-PIN and two 3-PIN outputs for
greater flexibility.
[70579] All 5-PIN DMX outputs.
All outputs are optically isolated (protects against
up to 1000V of stray voltage).
DMX512-1990 compatible.
Controls up to 512 channels
Daisy chain via input ports without utilizing any
output ports
LED indicators when powered.
External power supply (included).

SPECIFICATIONS:

Connectors
Input1
1x 5 Pin DMX
1x 3 Pin DMX
70578
Output
2x 3 Pin DMX
2x 5 Pin DMX
70579
Output
4x 5 Pin DMX
IP rating IP20
LED indicators Power & Data Output
Input Protocol USITT DMX512-1990
Output Protocol USITT DMX512-1990
RDM compatibility No
Max channel 512 channels (1 Universe)
Input Voltage 7V-24VDC
Maximum Current 400mA
Environmental operating
temperature
0°C to 50°C
32°F to 122°F
Environmental operating
humidity
5- 95%
(non-condensing)
Body material ABS plastic
Unit dimensions 116 x 87 x 52mm
Unit weight 0.16kg / 0.35lbs
Shipping dimensions 235 x 160 x 68mm
Shipping weight 0.5kg / 1.10lbs
Warranty 1 year return to base
manufacturer warranty
