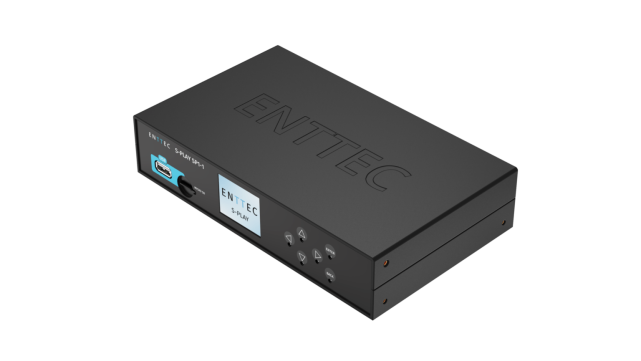

ENTTEC’s S-PLAY is a highly accurate, 32 universes
show controller and lighting record / playback
device.
Capture or create static scenes or record dynamic
cues from up to 32 universes of Art-Net, sACN or 2
universes of DMX. The built-in pixel effects
generator provides an intuitive tool to create the
desired look to be output to your pixel controller.
Using either RS232, Art-Net, DMX, Digital Inputs,
Relays, sACN, UDP or OSC; send commands to
external devices or receive triggers the device
allows external devices to fully integrate the SPLAY into the installation.
Using the intuitive drag and drop timelines
system, build playlists using cues, events and
triggers as building blocks. Control the number of
play counts, priority, fade times and master
intensities to fine tune your playlists.
Build schedules of playlists to play at certain
times of the day or use custom interfaces or
external triggers to allow multiple playlists to ruin
over the top of each other at the same time with
different groups and priorities

FEATURES:

In-built controls to record and play cues.
Internal memory supporting over 10 hours of 32
universe recording at 44FPS (plug in an external
Micro SD card to increase this recording size).
Create pixel effects using the effect generator
Up to 32 Universes of Art-Net and sACN recording
& playback.
Monitor the DMX values when recording cues.
Variable Art-Net/sACN refresh rate (60FPS max.).
Four digital inputs to trigger device from external
sources.
Two universe Physical DMX input or output. Two relay outputs to control external devices.
Create playlists from dynamic, static and internal
effect cues.
Send options: RS232, Art-Net, DMX, Digital Inputs,
Relays, UDP & OSC.
Remote trigger options: RS232, Art-Net, DMX,

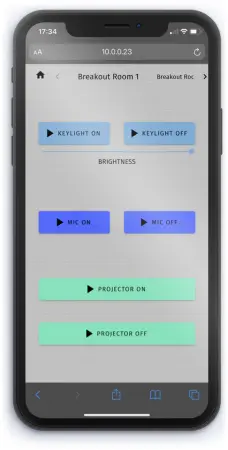

Digital Inputs, sACN, UDP & OSC Create customer facing web interfaces.
Schedule playlists

SPECIFICATIONS:

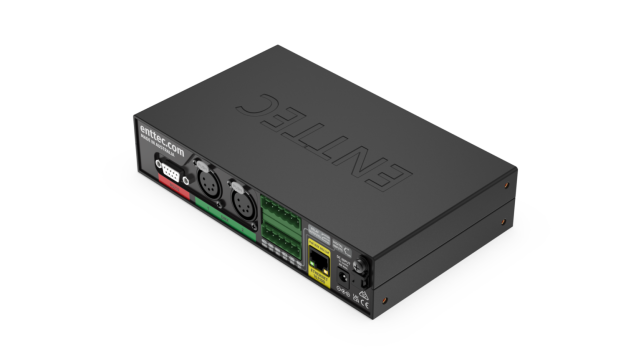

Connectors
1X DC Jack (Power)
2X Female XLR5 (DMX512)
1X RJ45 (Ethernet)
1X Male DB9 (RS232)
1X USB Type-A (Host)
4X Dry Inputs
2X Relay Outputs (max
limits, 50V DC or 60W)
1X Micro SD
IP rating IP20
Number of Universes &
Input / Output Protocol
2U: USITT DMX512-A
32U: Art-Net 32U: sACN
DMX Refresh Rate (FPS)
Art-Net &
sACN 1 to 60
USITT
DMX512-A
1 to 44
Input Voltage 12V DC to 24V DC
PoE IEEE 802.3af
Max. Power Draw 8W
Internal Show Storage
Capacity
8GB (~10 hours of 32
universes at 44fps)
Expandable storage Yes, using Micro SD
Cooling Method Convection
Environmental
operating temperature
0°C to 50°C
32°F to 122°F
Environmental
operating humidity
0 to 95%
(non-condensing)
Body material Anodized aluminium and
ABS Plastic
Unit dimensions 200*120*42 mm
Unit weight 0.85kg / 1.87lbs
Shipping dimensions 310*260*75 mm
Shipping weight 1.20kg / 2.65lbs
Warranty 3-year return to base
manufacturer warranty

ENTTEC S-PLAY (Enttec Smart Light Show Controller)
