The EPSILON EPS Series Subwoofer's are a compact yet powerful 1000-watt Class-D Active Subwoofer that will set a new benchmark for compact enclosures with extraordinary power in a sleek easy-to-carry design offering low end support and versatility.

The EPS Series delivers outstanding low-frequency and a powerful punch with its 1000 watt built-in Class-D amplifier; which makes it an ideal companion for any medium sized restaurant, DJ club system, live event or rental application. Epsilon offers a 12", 15", and 18" Hi-Powered compact Subwoofer to suit your needs.


Features:
1000-watt Class-D Amplifier (1000-watts, 1x12")
12-inch woofer in compact design wooden cabinet
Includes Built-in 1-1/2" (38mm) pole-mounting cup
Built-in Recessed handles for easy mobility and set-up
2 Combination XLR- ¼" TRS line-level inputs
Display LEDs : POWER illuminates when the unit is powered on, OFF disables the LED,
and LIMIT mode illuminates when the clip-limiter circuit is engaged.
Volume control and XLR balanced outputs for linking and daisy-chainable applications
Phase adjustable knob: 0-180 db
Rugged enclosure with textured black paint

Specifications:
Frequency Response(-3dB): 40Hz-1.5KHz
Max Peak SPL(calculated): 122dB
Max Peak SPL(measured): 119dB

Transducer Specifications:
Diameter: 12in/305mm
Voice Coil Diameter: 3.0in/76
Cone material: Paper
Magnet material: Ferrite
Power Amplifiers:
Rated Power: 500 watts rms 1000 watts Peak
Rated THD: <0.02%(at 1KHz 20W)
Cooling: Convection Extrusion
Design: Class D

Input / Output:
Input Type: XLR or 1/4" Jack
Input Impedance: 20k ohms
Full range (Link)/High Pass output(x-over): Male XLR Balanced
Full range output: Select Link output
High Pass out put: Select X-over output
X-over button: Cut low frequency, 80-180Hz
Phase adjustable: 0-180
Maximum input level ∞ To-3dB

Electronic Crossover:
Crossover Type: 12dB/Oct. Butterworth
Crossover Frequency: 80-180Hz

Enclosure Construction Features:
Basic Design: Asymmetrical Rectangle
Material: Polypropylene
Finish: Black texture finish
Handles: One on each side
Grill: Perforated mental with weather-resistant coating
Wood: 18mm Plywood & 18mm MDF

Physical Properties:
Height: 18.1 in/460mm
Width: 14.2 in/361mm
Depth: 18.7 in/475mm
Weight: 52.2 lb/23Kg

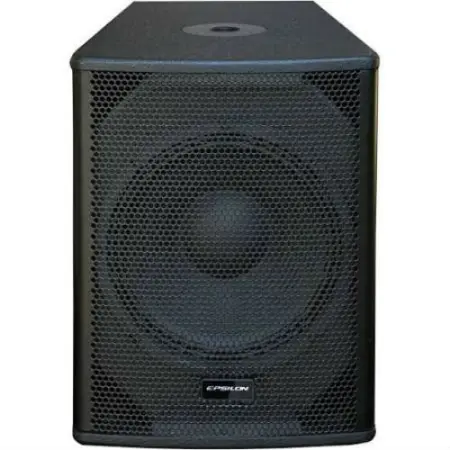

Epsilon Pro EPS12 (Epsilon EPS 12)
