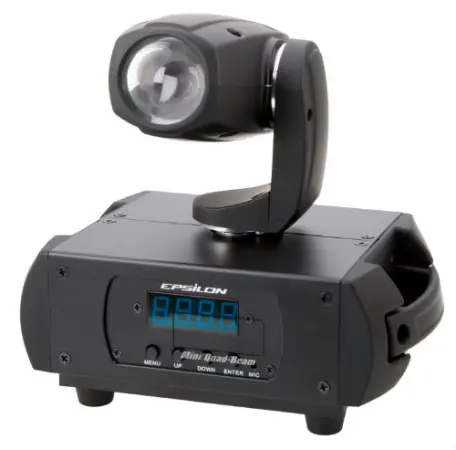

Epsilon Mini Quad-Beam

The Mini Q-Beam is a powerful ultra compact yet fast Moving Beam Head featuring a specific 2 degree beam angle effect. This unit has a very fast and precise PAN/TILT movement and produces outstanding Beam Effects with a high quality light output which makes this fixture a great companion for small – medium installs, live events, rentals or mobile entertainment.

Mini Quad Beam comes with 4-IN-1 LED Technology which includes RED, GREEN, BLUE & WHITE colored beam effect, 8 built-in internal working shows for easy setup without the need to program. This fixture is easily controllable by DMX mode, sound activation or master-slave options and allows the user to create professional show performances in seconds.

Features:

(1) 10W CREE XM-L (4-IN-1) Red, Green, Blue, White LED lamp
50,000 hours lifespan and low power consumption
Very fast and precise PAN/TILT movement
540° PAN and 270° TILT
Scan position memory, auto reposition after unexpected movement
Outstanding Multi-Color BEAM effect
Specific 2° optic system, 2° Beam Angle
705LUX(R), 840LUX(G), 1040LUX(B) and 1410LUX(W)@5 Meters
High efficiency LED shutter with variable speed
Strobe effect with 18 flashes per second and pulse effect
0-100% smooth linear dimmer
8 built-in default programs for easy performance
10/12 DMX Channels USITT DMX-512
DMX-512, Master/Slave and Sound Activated Controllable or Auto Operation
LED display
Efficient low noise fan cooling system
IEC power connector IN
3-pin DMX connectors IN/OUT

Specifications:

LED Quantities: (1) 10W 4-IN-1 LED CREE X-Lamp XM-L
Control Signal: DMX-512, Master/Slave and Sound Activated or Auto Operation
Control Channel: 10/12 DMX Channels USITT DMX-512
Power Consumption: 35W
Input Voltage: AC90-260V 50/60Hz
Dimensions:
5.6"(D) x 6.46"(W) x 10.18" (H)
Weight: 5.51 lbs/2.5kg
