ontrol your show in style using the portable and affordable lineup of ColorSource® Consoles available from ETC. With moving lights, LEDs and multimedia appearing in more and more shows, even small venues need a board that can handle an intelligent rig...intelligently. The ColorSource model is available in 2 sizes - ColorSource 20 and ColorSource 40 - with this version being the ColorSource 20.

This ColorSource console delivers hands-on control designed for the latest lighting technology, specializing in a streamlined, plug-and-play setup; when the console powers up, it uses RDM to recognize intelligent lights in the rig and auto-populates them in patch. Just use the on-board touchscreen, then drag each light fixture into place on the customizable stage map, and you'll be programming in minutes. Whether recording cues or working on the fly, this console has you covered, with faders that can be employed to play back looks and effects or to mix the perfect color in your LED lights.

Applications
One-off events
Corporate theater
Touring productions
School auditoriums/theaters
Community theater
Houses of worship
Small TV studio
Tradeshows
Features
7" integrated multi-touch display
(4) configurable sliders
(5) configurable soft keys for common commands
Color, intensity, position, and parameter effects
Intuitive color control of LEDs
"Simple Mode" operation with 4 looks
Specifications
Faders: 20
5-pin DMX ports: 1
USB ports: 1
Control channels/device: 40
Playback pages with configurable modes: 10 (200 total)
Physical:
Dimensions (HxWxD): 2.5" x 18.3" x 10.8" (64 x 465 x 274mm)
Weight (typical):
Product: 6.9 lbs (3.13 kg)
Shipping: 10.85 lbs (4.92 kg)

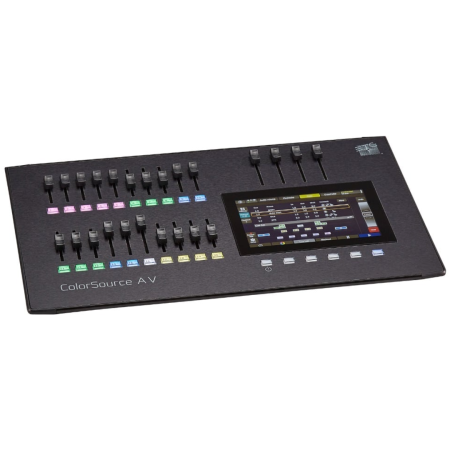

ETC Color Source 20 (ETC DMX Control Console for 40 Fixtures with 20 Faders)
