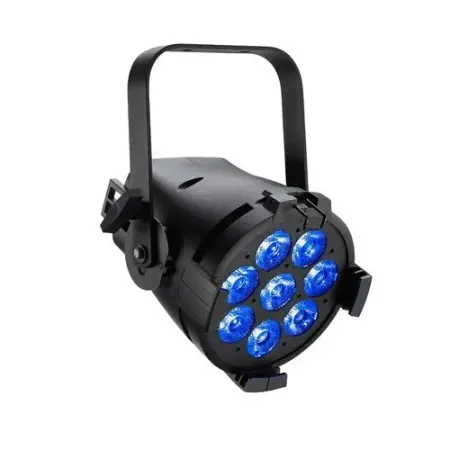

The ColorSource CSPARDB-C Deep Blue LED luminaire was crafted by the lighting experts at ETC to deliver bright, beautiful light and ease of use, with or without a lighting desk. The ColorSource Deep Blue replaces standard blue LEDs with a deeper 'Royal Blue' (indigo) LED, resulting in stunning, saturated blues and magentas. The kind of light you can feel.

In keeping with ETC's high standards for quality, all ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-color mixing system offering bright, vibrant colors and perfectly-mixed pastels. Plus, the thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show. The type of power cable is determined by the variant chosen.

FEATURES:
Three array options:
- Original RGB-L (Red/Green/Blue/Lime)
- Deep Blue RGI-L (Red/Green/Indigo/Lime)
- Pearl (Warm and Cool White), see separate datasheet
Homogenized optics
Simple user interface with seven-segment display
powerCON® in and thru
5-pin XLR
LED droop compensation
Optically calibrated
Tour-ready, aluminum housing

SPECIFICATIONS:
SOURCE
40 Lumileds LUXEON® Z LED
PAR: 3,039 Max lumens
PAR DB: 2,429 Max lumens
PAR: 28.1 Lumens per watt
PAR DB: 27.6 Lumens per watt
L70 rating (hours to 70% output): 55,000 hours*
COLOR
PAR Deep Blue: red, green, indigo, lime
Color mixing
Calibrated array
No red shift
OPTICAL
14.5° (secondary lenses available for multiple beam-spread options)
Gate size: N/A
7.5 in / 190 mm aperture size
No pattern projection
No pattern size
1,200 Hz (default) and 25,000 Hz (via RDM)
ELECTRICAL
100-240 VAC 50/60 Hz
powercon power in and thru
35 A at 120 V (First half-cycle)
49 A at 240 V (First half-cycle)
9 fixtures (15 A power thru connector)
10 fixtures (R20 module or similar)
90 W at 120 V / 89 W at 240 V
0.75 A at 120 V / 0.4 A at 240 V
THERMAL
Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable)
Droop compensation
24.8 dBa average at 1 m (each cell)
307.08 / 303.67 BTUs/hour (RGB-L / DB)
CONTROLS
DMX512 via 5-pin XLR or RJ45 connectors Input method
DMX512/RDM
4 modes for footprint
RDM configuration
UI type: Seven-segment, three-button interface
Local control
12 Onboard presets
5 Onboard sequences
No onboard effects
Fixture-to-fixture control
15-bit virtual dimming engine
Physical
Materials Die-cast, all metal housing
Color options Black, white, silver, or custom color
Mounting options Yoke, floor stand yoke (available as
an accessory)
IP rating IP20
Weight 3.77 kg (8.3 lb)
Included accessories Hanging yoke, power cable
User interface Seven-segment, three-button
interface

ETC LIGHTING CSPAR-DB (ETC CS-PAR-DB)
