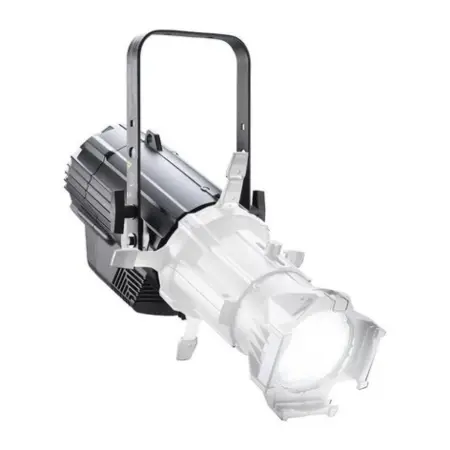

The S4LEDS2L-0-A from ETC is a Source Four LED Series 2 Lustr Light Engine Body Only in the color black. Comes with one of the following connectors: Bare End, Edison, Twist Lock, or Stage Pin. This unit is intended for use with zoom lens tubes and retrofit of existing fixtures.

The Source Four LED Series 2 is the evolution of LED lighting. While it may look the same on the outside, the Series 2 offers even more of what makes the Source Four LED the best LED profile available. With optimized arrays and finely-tuned electronics, the Series 2 offers a combination of color and output that cannot be matched. Source Four LED Series 2 Lustr® luminaires are based on the x7 Color System™, utilizing seven colors including high-output lime to achieve true, usable broad-spectrum color with a depth and feel beyond any RGB fixture.

Series 2 Lustr light engines work with all Source Four lens tubes to deliver a high-quality, controllable beam of LED light. For the best results, it is highly recommended that EDLT versions are used. ETC also offers a special LED-only version of the 50° lens tube.

NOTE: Lens tubes need to be ordered separately.

Applications:
Theaters
Convention centers
Studios
Theme parks
Schools
Museums
Houses of Worship
Temporary events
Hotels

Features:
60 Luxeon® Rebel LED emitters
20,000-hour LED life
Patented x7 Color System array
Includes slots for glass or stainless steel gobopatterns and soft focus diffuser media
Accessory slot for motorised pattern devices oroptional iris
Power in/thru via PowerCon connections
Up to three fixtures can be linked in via powerin/thru connectors (four total fixtures per circuit)
DMX512-A/RDM in/thru via five-pin XLR connectors
Multiple control options, including RGB, strobe, andconsole-free Master/Slave mode
15-bit virtual dimming engine for smooth fades andminimal color shift during dimming
CE compliant; IP20 rated
Available in black (standard), white or silver grey (optional) or custom colors by request

Specifications:
General:
60-LED array
ETL listed to UL1573 – the standard for stage and studio lighting units
IP20-rated for indoor use
Power and DMX in/thru connections for easy setup
User-friendly control interface with multiple modes and fixture settings

Physical:
Rugged die-cast all-metal housing
Available in black (standard), white or silver gray (optional) or custom colors (contact factory)
C-clamp
Positive-locking double-clutch fixture body
Slot for glass or stainless steel patterns and softfocus diffuser
Wide accessory slot with sliding cover for motorized pattern devices or optional iris
Hanging yoke standard. Optional yoke/floor stand available

Electrical:
100VAC to 240VAC 50/60 Hz universal power input
Neutrik power in and thru connections
Up to three fixtures (15A max) may be linked via power thru connector (four fixtures total per circuit)
Requires power from a non-dim source
Inrush:

LED:
20,000-hour LED life (20,000 hours to 70% intensity)
60 Luxeon® Rebel LED emitters

Color:
Exclusive x7 Color System seven-color LED array
Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
Broad-spectrum color interacts seamlessly with conventional sources
Exclusive optional red-shift option emulates tungsten dimming performance

Optical:
Use the included soft-focus diffuser for creating washes or soft light
Best performance using ETC’s EDLT lens tubes
Can use all ETC Source Four interchangeable lens barrels: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles, as well as 19°, 26°, 36°, and 50° EDLT lenses
For better performance, use the LED 50° barrel

Control:
DMX512 in and thru via five-pin XLR connectors
Multiple control options, including RGB, strobe, and console free Master/Slave mode
15-bit virtual dimming engine provides smooth,high-quality theatrical fades and minimizes color shift during dimming
RDM functionality for address and setting changes

Thermal:
Ambient operating temperature of 32° to 104°F (0° to40°C)
A ctive electronic thermal management for droop-free operation
Quiet fan cooling
Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing

Weight:
With Barrel: 18.3 lbs (8.3 kgs)
Without Barrel: 14.3 lbs (6.5 kgs)

(ETC X7 Color With Lime LED Ellipsoidal Light Engine)
