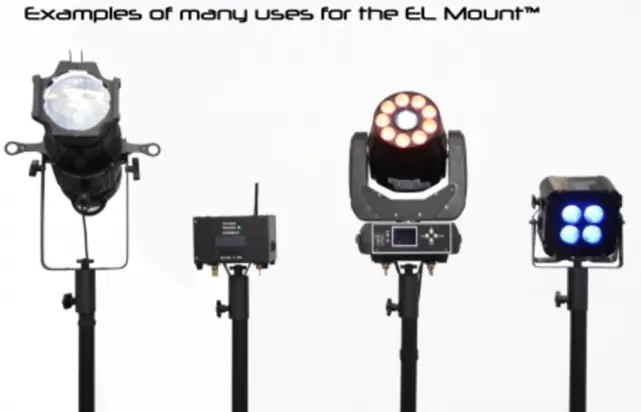

The EL Mount™ is used to mount items such as the EchoMATE,
CUBEecho MK2, Small compact Moving heads such as StellarSpotFX,
LED Gobo Projector, Ultra120 DMX, or any other light.
The EL Mount™ was designed for use with tripod or weighted base and pole for
mounting a light fixture or other lighting related device such as EchoMATE™ for
elevated wireless DMX transmission of the signal strength.
Features & Technical Specifications:
Easily Mount Lighting fixtures to the top of tripod or weighted pipe and base
Weight: 0.75 lb (3/4 lb)
Fits Tripod Diameter 1.250" - 1.620"
Always use safe mounting practice with weight mount to base width and weight ratio
Maximum mounted light/fixture weight 22 lbs
Steel construction powder coated black coating
Knob Threads M8x1.25
Overall Length 4.75"
Overall Width 3"
Pipe Outer Diameter: 1.875"
Pipe Inner Diameter: 1.625"
What is included:
(1) EL Mount pipe device with threaded top and threaded side for set screw knob
(1) Threaded Knob for top
(1) Threaded knob for side set screw
(2) Rubber Washers for set screw and top knob
