This product has been discontinued by the manufacturer. Please contact us to find a replacement.

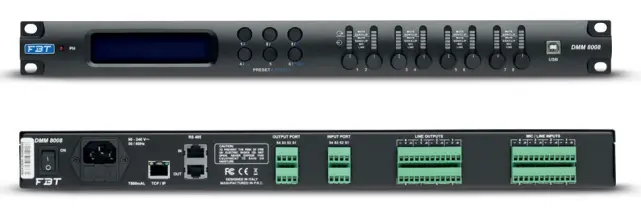

8 Input x 8 Output Digital Matrix Mixer
Excellent audio performance with 24 bit converters coupled with 48kHz sample rate
8 Mic/Line inputs, 8 outputs with full matrix mixing, 3 band parametric equalization and Low/High pass filters per input channel
5 band parametric equalization per output channel; each band can be switched to peaking, Low/High shelving with variable Q response
Crossover filters with slopes from 6dB/Octave up to 24dB/Octave including Butterworth, Bessel, Linkwitz-Riley
Gain control, Noise Gate, Feedback eliminator (Mic input only) per input channel
Each output features a precision dynamic range controller composed of a Peak Limiter and a RMS Compressor with selectable ratio and variable knee
Automixing functions include: Configurable NOM attenuation, Gain sharing algorithm, Priority Ducking
Adjustable Delay time up to 380mS per output channel
Front panel interactive LCD display for local access and configuration
Front panel 6-led status indicators per In/Out channel
8 front knobs available for Mic input Gain control
4 input contacts for additional 4 preset selections with priority configuration
4 digital output ports for triggering external devices
Simultaneous control up to 32 units via PC software - iPad®
Security lockout
TCP/IP, RS 485 and USB connection for remote controls
