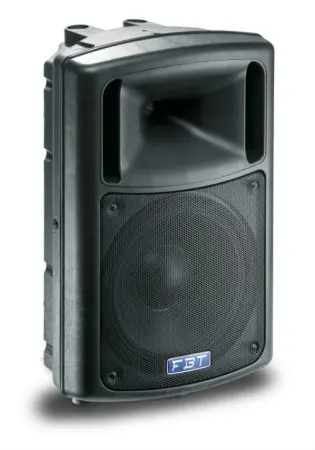

PROCESSED ACTIVE SPEAKER 400W + 100W RMS - 130DB SPL
The Second generation of an International Best Seller
Evolving from the FBT EvoMaxX Series of loudspeakers, FBT Evo2MaxX speakers feature totally new Digital Sound Processing resulting in improved sound quality and SPL, especially in bass reproduction at high volume. The sound is more relaxing and natural and the four new DSP presets provide quick dynamic equalization and protection contours for any acoustically challenging venue. Other exciting features are high efficiency and excursion woofers, powerful Class D amplifiers with an extremely low noise floor.
Alongside these key performance improvements, FBT has been inspired to develop the Evo2MaxX Series by one very important goal – offering the customer more value for money. Evo2MaxX lightweight yet sturdy polypropylene cabinets feature a monitor taper designed to ensure that they perform with excellence no matter whether they are used at front of house for a main sound system, as stage floor monitors or within permanent installations.
Additional options are also available for extending low frequency response in the shape of the 15” subwoofer Evo2MaxX 9Sa or the SUBLine 12Sa, 15Sa and 18Sa, all of which boast birch plywood enclosures with 12”, 15” band-pass and 18” reflex designs respectively.
Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance.
High efficiency loudspeakers custom made for FBT with a weather resistant coating, allowing use in covered outdoor applications.
B&C HF compression drivers.
Latest Class D, 400W LF and 100W HF power amplifiers with high efficiency switch mode power supplies. These amplifiers boast an extremely lightweight design with passively cooled circuitry, meaning no noisy fans!
New digital signal processor with dynamic equalizations and sophisticated dynamic limiters four improve sound quality and SPL granting reliable and distortion-free audio reproduction
New 4 DSP presets for improved versatility and ease of use
Premium sound quality as results of extensive listening test
High SPL thanks to FBT’s new digital limiter algorithms and high power class D amplifier
Ergonomic carrying handles, M10 fly points, a top-hat speaker stand socket and a stage monitor taper – all included to ensure superb versatility for live sound events and permanent installations.
The presets include:
ORIGINAL: Corresponding FBT benchmark sound for use in general applications.
FLOOR/VOCAL: The Evo2MaxX immediately becomes an ideal stage monitor. Also suited for high clarity and intelligibility vocal reproduction.
BOOST/LOUNGE: Providing loudness contour with increased bass response for a relaxing and very enjoyable listening, especially at low and medium volume.
CLUB/DJ: Providing all the punch and full-bodied response required by DJ users, suitable for high volume DISCO and PARTY applications.
Specifications:
2-way, bi-amplified, bass reflex design cabinet
320mm (12”) LF woofer with 64mm (2.5”) voice coil, custom made for FBT
25mm (1”) exit throat B&C HF compression driver
Frequency response from 50Hz to 20 kHz
Biamped: 400w RMS LF, 100w RMS HF, Class D power amplifiers with switch mode power supplies
Digital Signal Processor with 4 Equalization Presets
Control Panel: features balanced XLR/Jack input and XLR link out, Volume, EQ Presets, HP Filter, 3 status LED indicators
90°H x 60°V Constant Directivity Horn
Sturdy gas-injected polypropylene molded enclosure with two integrated handles and Stage Floor Monitor taper
4 x M10 suspension points, 35mm (1⅜”) top-hat speaker stand socket, wall bracket mount flange plate
Enclosure suitable for stacking
Extremely light, Net Wt. only 15.6kg (34.4 lb)
Configuration: 2 way
Built-in amplifier LF/HF: 400/100 W RMS
Built-in amplifier peak LF/HF: 800/200 W
Frequency response: 50Hz - 20KHz -6dB
Low Frequency woofer: 12 - 2.5 coil inch
High Frequency driver: 1 - 1.4 coil inch
Maximum SPL 130 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 Kohm
Crossover Frequency: 1.6 KHz
AC Power requirements: 450 VA
Input connector: XLR with loop
Power cord: 5 / 16.4 m/ft
Net Dimension (WxHxD): 407x634x330 - 16x25x13 mm/inch
Net Weight: 15.6 / 34.4 Kg/lb
Transport Dimension (WxHxD): 510x704x410 - 20.1x29.1x16.1 mm/inch
Transport Weight: 18 / 39.6 Kg/lb
