Developed to meet the increasingly diverse needs of rental companies and systems integrators, the HORIZON VHA (Vertical Horizontal Array) series by FBT is set to rewrite the rules of sound reinforcement system design when it debuts at Frankfurt Pro Light + Sound 2018.

Delivering optimal audience coverage with the ability to adapt to the requirements of the project at hand, HORIZON VHA represents a step forward in flexible sound reinforcement technology with exceptional sound quality. Crafted in Italy with the no-compromises manufacturing excellence for which FBT is known, the HORIZON VHA series comprises the full range VHA406A, plus two options for low-end extension in the shape of the 12” VHA112SA and 18” VHA118SA.

Constructed in birch plywood with a tough and tour-ready synthetic rubber surround, each VHA406Acomprises four 6.5-inch woofers plus a 1.4” large-format neodymium compression driver with a 2.5” voice coil. The purpose-designed central waveguide, optimized with BEM finite element simulations, offers dispersion of 90° horizontal and 20° vertical, with precise and focused vertical control across the enclosure’s entire operating range. The result is a combination of perfectly balanced, symmetrical dispersion – multiple system can be coupled with full coherence far beyond 18KHz, plus a particularly powerful, defined midrange with a frequency response extending from 65Hz to 20KHz.

The VHA406A’s Class-D, switch mode amplifier module is constructed in die-cast aluminum with natural convection to deliver 600W for the LF section and 300W for the HF. Courtesy of an integrated DSP processor with next generation algorithms, users can choose from eight presets to further tailor system performance whilst enjoying the system’s tremendous headroom to ensure the best possible audio fidelity.

Integrated hardware allows the linking of up to six VHA406A cabinets with variable angles from 5° to 20° (in 5° steps), ensuring an easy and error-proof system configuration and set-up. Rigging is simplified even further by the inclusion of only one setting point per side. All setting pins are fixed and integrated into the hardware, eliminating both the risk of loss and damage in transport.

Crucially, the HORIZON VHA system also boasts integrated quick-release anchor points that facilitate the creation of horizontal arrays using the dedicated flybar. Each flybar will support up to three VHA406A cabinets, while multiple flybars can be joined for the creation of arrays delivering up to 360° coverage.

For low-end extension, meanwhile, the VHA112SA flyable bass-extension module is ideal for small-to-medium sized projects, seamlessly matching the VHA406A in both size and shape yet housing a single 12” B&C long excursion woofer. The bass reflex design incorporates a laminar air flow to minimize turbulence and compression, while the Class-D amplifier module drives the system with 1,200W, and includes on-board DSP with filtering, equalization and limiting.

For larger spaces, the ground-stacked VHA118SA is an exceptionally powerful and versatile subwoofer that sets a new standard for SPL to size ratio. Comprising a single 18” B&C woofer, the birch plywood, bass reflex sub again deploys a laminar air-flow for refined performance, while its 2,500W Class-D amplifier module offers a selection of six entirely rewritten preset algorithms.

The design of the VHA118SA has produced a unique low-end module that is capable of generating extremely high levels of SPL for prolonged periods. Using BEM finite element simulations, FBT has optimized the woofer’s load volume, while careful study of the grille and the assembly’s protective fabric have minimized acoustic impedance for a net improvement in performance compared to previous models. The addition of the VHA118SA extends the overall system frequency response to 30Hz, while the sub can support fully ground-stacked configurations courtesy of special integrated mounting hardware.

Features:

Bi-amplified 2-way line array
4 x 165mm (6.5 ") custom woofers with 38mm (1.5") coil
Neodymium B&C compression HF driver with 36mm (1.4") spout and 64mm (2.5") coil
Large format FBT waveguide with 90° (H) x 20° (V) dispersion
Frequency response from 65Hz to 20KHz
Class-D 600Wrms for LF and 300Wrms for HF amplifiers with switch mode power supply
DSP processor with 8 equalization presets
Control panel with XLR input and link, volume, presets, filter-HP, ground-lift
Neutrik PowerCON TRUE1 IN and LINK power connectors
Cabinet in 12mm (0.5") birch plywood with anti-scratch varnish. Handles with rubber inserts and rubber-coated sides to protect the cabinet from bumps and scratches.
Side suspension hardware with integrated setting pins, inclination between adjacent cabinets from 5° to 20° in 5° steps. Possibility of vertical and horizontal installation through dedicated flybars.
Wide range of accessories for suspension, pole-mounting or ground-stacking.
Ideal for both live applications, assisted by one or both subs of the VHA range, and for fixed installations

Specifications:

Code: 41741
Built-in amplifier LF/HF: 600/300 W RMS
Built-in amplifier peak LF/HF: 1200/600 W
Frequency response: 65Hz - 20KHz -6dB
Low frequency woofer: 4X6.5 - 1.5 coil inch
High frequency driver: 1x1.4 - 2.5 coil - neodymium inch
Maximum SPL cont/peak: 128/133 dB
Dispersion: 90x20 H x V
Input impedance: 22 Kohm
Crossover frequency: 1.2 KHz
Ac power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5 mm/inch
Net Dimension (WxHxD): 612x360x397 / 24.1x14.2x15.6 mm/inch
Net weight: 29 / 63.9 kg/lb
Transport Dimension (WxHxD): 695x440x475 / 27.4x17.3x18.7 mm/inch
Transport weight: 33/72.7 kg/lb

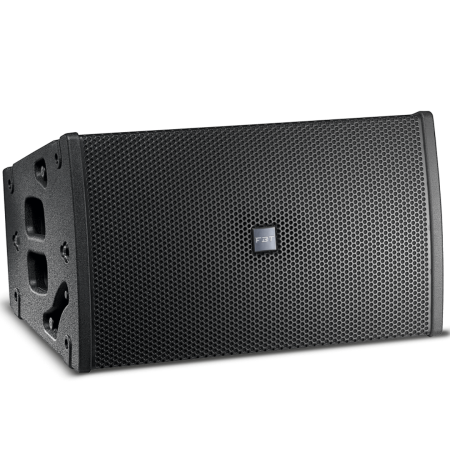

FBT HORIZON VHA406A (FBT HORIZON VHA 406A)
