J 5 - Passive 5" + 1"

KEY FEATURES
2-way passive sound reinforcement system
Polypropylene enclosure
1 x 5" custom woofer
1 x 1" neodymium silk dome tweeter
80W RMS recommended amplifier
40W long term power
160W short term power IEC 268-5
2 x M6 suspension points
Internal passive crossover filter
Input panel with jack and terminal connector
Available in white color
Completely manufactured in Italy

Applications
Band P.A.
Personal monitor
Small theatres
Auditoriums
Piano bar
DJ
Stage monitor
Conference rooms
Fixed installations in live clubs
Pubs
Gyms

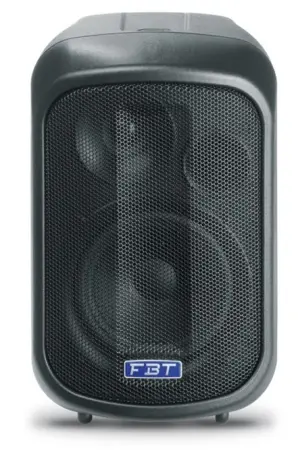

The Black J5 is a passive speaker featuring a 5" Woofer and a 1" Sik Dome tweeter. This italian made speaker features a rugged gas injected molded polypropylene cabinet and Input panel with jack and terminal connector. The 16? impedance allows multiple speakers to be connect to a single amplifier.

*Available in Black or White

PRODUCT DESCRIPTION
Sound Reinforcement Monitor

The FBT J5 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction.
Available in black or white finish the FBT J5 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.
With the use of optional accessories the FBT J5 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.
The FBT J5 is of two way design incorporating an 5" low frequency woofer and 1" HF custom compression driver. Cabinet dispersion is 90°H x 90°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 3.5kHz. With a frequency range of 90Hz - 20kHz the FBT J5 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 117dB.
A front face steel grille protects the speaker from external damage.

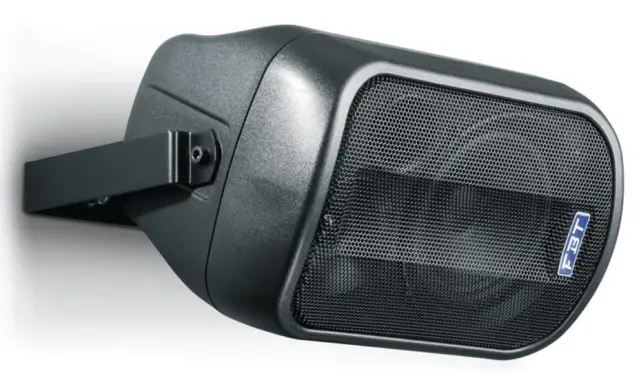

Ideal for small fixed installations the FBT J5 speaker system have an impedance of 16 Ohm allowing four FBT J5 speakers to be utilised per channel, for a total of eight J5 speakers when used with a stereo power amplifier capable of operating at 4 Ohm. The two M6 fly points built into the cabinets along with the optional mounting brackets allow the FBT J5 speakers to be surface mounted on walls or ceiling.
For portable or fixed use the FBT J5 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature both a female 1/4" input jack and push pin terminal connectors which are internally connected in parallel providing various wiring options for the installer.

Configuration: 2 Way
Frequency response: 90Hz - 20kHz
Low frequency woofer: 5" with 1" VC
High frequency driver: 1" Dome Tweeter
Maximum SPL cont/peak: 114/117 dB
Dispersion: 90 x 90 (HxV)
Input impedance: 16ohm
Crossover frequency: 3.5kHz
Input connector: Jack + Terminal
Net Dimension (WxHxD): 170 x 275 x 180mm / 6.69 x 10.82 x 7.08in
Net Weight: 3.4kg / 7.49lb
Transport Dimension (WxHxD): 240 x 345 x 235mm / 9.44 x 13.58 x 9.25in
Transport Weight: 4.2kg / 9.25lb

FBT J-5 Black Passive (FBT J 5)
