HIGH PERFORMANCE 12” COAX HORN LOADED, MEDIUM/LONG THROW 600W/8OHM - 132DB SPL
Shadow - High quality music and voice with extreme weather conditions

SHADOW is a complete range of very high performance full range and horn leaded loudspeakers, designed to provide high quality music and voice reproduction in applications with extreme weather conditions resistance, ensuring a long term exposure to all kind of severe environment conditions.

High quality voice reproduction and music performance, normally associated only with indoor systems, are now available for outdoor use, with the brand new SHADOW series of speaker cabinets.

The all Italian Style and the severe construction methods make all loudspeakers suitable for any indoor environment as well.

These all weather products family provide the system designer with the right choice to handle a wide range of applications, that span from sports fields to stadiums, theme parks, swimming pools, themed restaurants, and all environment demanding the highest quality speech and music reproduction, combined with the product durability.

FBT brand new all weather speaker range will provide long term reliability for temporary and permanent outdoor installations, as these speaker systems are manufactured applying the most severe standard expected from a classification of International Protection Rating IP 55. So they represent the fruit of many years of experience in research, development and testing, that makes FBT proud to apply the long experience as speaker manufacturer in this new systems for all weather applications.



ITALIAN STYLE

FBT’s SHADOW loudspeakers are completely designed and manufactured in Italy, assuring an

elegant and attractive aesthetic to a very high technical system and featuring an high degree

of quality standard.

WATER STOP GRILL

The prime consideration in designing SHADOW cabinets was extreme weather resistance, also

for the drivers that would be employed inside them. The exceptionally weather resistant driver

is further protected by the water-stop grille: it stops the elements, solid or liquid, from getting

inside the enclosure. Each protective grille is a 3 layers structure that consists of an external

perforated stainless steel panel treated with a special protection, a center layer of reticulated

foam and an inner layer of water-repellent polyester mesh, providing maximum protection and minimal acoustic attenuation.

CIRCUITRY PROTECTION

All internal circuitry is protected with a special sealing and treated with weather proofing  compound against the effects of moisture, corrosion and oxidation.

MOUNTING ACCESSORIES

Weather resistant steel mounting brackets are included with all models.

ROTOMOLDED ENCLOSURES

The cabinet of these loudspeakers is a single piece rotomolded enclosure, made in polyethylene, fully UV protected equipped with a stainless steel U-Bracket for fixed installation.

The curved shape helps to reduce acoustic reflections and standing waves within the enclosure, for improved LF performance, and in outside the rounded shape inhibits standing water and helps to diffract wind, reducing load on the structure.

High performance 12” coax horn loaded, medium/long throw

600W/8ohm - 132dB SPL



12” woofer with 2.5” coil horn loaded
Constant directivity horn 1” HF driver with 1.7” coil
An optional transformer model, SHADOW 112HCT, is also available with 200W/100W power tapping selection
90x60° coverage
4 wires cable to select the desired power tapping
Sturdy molded polyethylene curved enclosure
Water-stop grill with 3 layers of protection
Steel U bracket and other included hardware accessories IP55 weather resistant
Standard grey finish RAL 7011

This is a very high performance horn loaded system, to provide maximum intelligibility from the same compact enclosure, with the same dimensions of SHADOW 112CT. Extremely powerful system for voice announcements and music reproduction. SHADOW 112HC can act as both a musical entertainment loudspeaker and a voice PA loudspeaker at the same time. The wide range, smooth frequency response and high efficiency of SHADOW 112HC ensure excellent quality music reproduction and clear intelligible speech with very low distortion.

Code: 36159
Configuration: 2 way
Recommended amplifier: 600 W RMS
Long Term power: 300 W
Short term power: 1200 W
Transformer: 100/200 optional V
Nominal impedance: 8 ohm
Frequency response: 95Hz - 20KHz -6dB
Low Frequency woofer: 12 - 2.5 coil inch
AES power: 250 W
High frequency driver: 1 - 1.7 coil inch
Sensitivity (@1W/1m): 101 dB
Maximum SPL cont/peak: 128/132 dB
Dispersion: 90°x60° HxV
Crossover Frequency: 1.6 KHz
Recommended HP filter: 70hz - 24dboct
Input connector: 4 wire cable
Net Dimension (WxHxD): 430x430x400 - 16.92x16.92x15.74 mm/inch
Net Weight: 21/46.3 kg/lb
Transport Dimension (WxHxD): 530x530x500 - 20.86x20.86x19.68 mm/inch
Transport Weight: 23/50.7 kg/lb

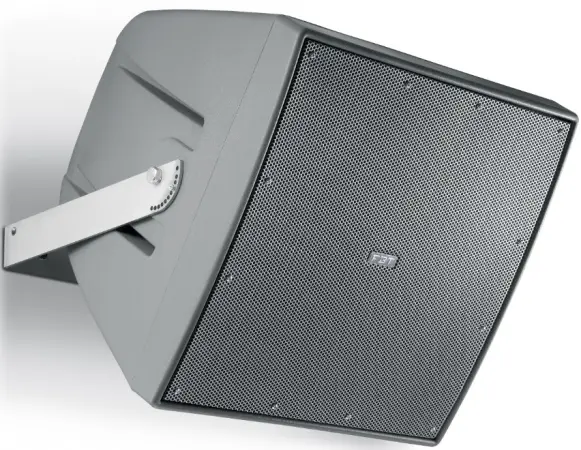

FBT Shadow 112 HC T (FBT Shadow 112HC)
