Processed Active Speaker

FBT X-Lite 12A - FBT Xlite 12A

1000W - 127dB SPL

2-way bi-amplified bass reflex
FBT Custom 320mm (12”) LF woofer with 50mm (2”) voice coil
FBT 25mm (1”) throat /35mm (1.4”)voice coil HF compression driver
50Hz to 20KHz Frequency Response
90° H x 60° V constant directivity horn
30° or 45° monitor taper

FBT Xlite 12A Features and Specifications:

Polypropylene molded enclosure designed to eliminate unwanted resonances
Custom FBT Speakers with high linear excursion capability and efficiency
Compression driver with 25mm (1”) throat and 35mm (1.4”) voice coil
1000W, 2-channel amplifier in Class D for LF and in Class AB for HF with a high dynamics response for a pleasant sound at high volume.
Universal switching mode power supply 100-240VAC
DSP with 4 EQ presets designed to tailor the sound of the speaker to various applications and installation environments
Advanced algorithms for filtering and equalization which alter the dynamics of the low frequency energy according to the selected preset, allowing distortion-free high SPL performance

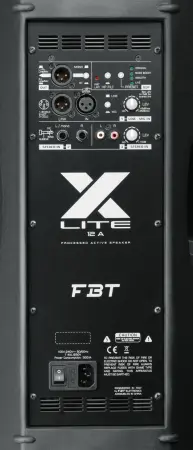

Control panel with XLR input and link out , 1/4" stereo input with volume , stereo RCA input with volume , XLR output selector coupled with stereo / mono , HP filter on / off, mic / line , DSP preset selector
Integrated mixer with two stereo channels , one channel mic / line input and an output coupled XLR mono / stereo to revive the other channel of the stereo signal to another speaker.
Integrated handles , M10 rigging points for suspended installation, 35mm stand socket and monitor taper, all included to make the speaker adaptable to any application

Configuration:
2 way

Built-in amplifier LF/HF:
800/200 W RMS

Frequency response:
50 Hz - 20KHz -6dB

Low Frequency woofer:
12 - 2 coil inch

High Frequency driver:
1 - 1.4 coil inch
Maximum SPL cont/peak:
127 dB

Dispersion:
90°X60° HxV

Input impedance:
22 Kohm
WxHxD: 370mm x 640mm x 370mm

Weight: 32 pounds

FBT Xlite 12A (FBT X Lite 12A)
