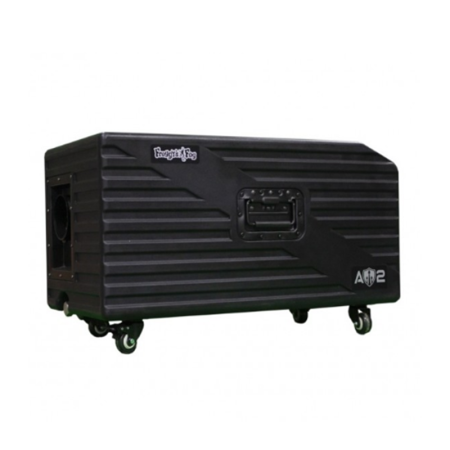

The Froggys Fog - Poseidon® Aqua 2 is an event-ready, Ultrasonic Low Fog Generator. It continuously creates high-output low-lying fog without the use of cryogenics, refrigeration plants, or dry ice. The advanced ultrasonic technology internally combined with traditional thermally-produced fog means that the ONLY expendables required are fog fluid, water, and electrical power. The rugged chassis is designed for heavy-duty applications such as touring and can endure the rigors of use in the most demanding of applications. With a simple, user-friendly LCD display, intuitive controls, and DMX onboard, the Poseidon Ultrasonic Low Fog Generator is ideal for any professional production, touring, themed entertainment, or theatrical application requiring voluminous low fog production that is quiet, efficient, and cost-effective.


ADVANCED AUTO WATER REFILL SYSTEM

Never worry about refilling your water tank! Simply connect the machine to a water supply with the included adapter, and the A2 will do the work for you.


MULTI-STAGE HUMIDITY CONTROL

Take complete control of your fog to mist ratio with adjustable humidity. This allows you to dial in your perfect settings for your fog effects.


COMPLETE FOG AND FAN VOLUME CONTROL

Adjustable fog output and fan speed allows for the perfect speed of output and thickness of fog effects for any application.


GRAVITY FED WATER RESERVOIR (NO WATER PUMP) WITH DRAINS

This gravity fed system allows for greater reliability and simplicity for this machine. When transporting, a drain system aids in more convenient, mess-free travel.


AUTO SENSES LOW WATER & LOW FOG FLUID

No need to worry about the Poseidon machines running dry, the A2 has sensors built-in to detect low fluid levels.


LOCKING SEETRONICS POWER CONNECTOR

This locking power connection ensures that your machine will stay running thorughout operation. Loose connections and pulled power cables are no problem for the Poseidon lineup.


UNIQUE WATER RECAPTURE DESIGN MINIMIZES CONDENSATION

The A2 not only operates extremely efficiently; it does so with very little mess!


RUGGEDIZED SINGLE PIECE POLYMER CHASSIS

This machine is tough enough for any application. There's no need to worry about scratches and dings here!


AUSTENITE WELDING AND ANTI-CORROSIVE PRIMER

Humid and wet environments are no problem for the A2. While other machines may rust, the Poseidon machines are quite comfortable with water.


OPTIMIZED HEATER CORE FOR CONTINUOUS OPERATION

No need to stop the fun to reheat! These machines are designed to run indefinitely.


ADVANCED FOG EXPANSION CHAMBER DESIGN

Complete atomization of the fog means this machine runs extremely efficiently. No need for frequent refills!


BUILT-IN LCD CONTROL PANEL

Easy to see, easy to use. Why would you settle for less?


5-PIN AND 3-PIN DMX ONBOARD.

No matter what your DMX preference is, the A2 will integrate seamlessly with your system.

SPECIFICATIONS
Physical
Length: 29 in. Box: 34 in.
Width: 15.4 in. Box: 18.1 in.
Height: 17.7 in. Box: 20 in.
Net Weight: 71 lbs Gross Weight: 80 lbs


Performance
Fluid consumption (100%): 25 ml/min
Maximum operating time, maximum output: 32 min
Ready time: 4 Min


Control and Programming
Control options: DMX, LCD Control Panel
Fog and Fan output control, 0-100%
DMX channels: 3
External fluid control: Fluid sensing



Construction
Housing: Polymer Cased Metal
Color: Black
Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: .8 Gal. drop-in fog, 6 Gal. Water Tank


Installation
Mounting: Level Surface
Orientation: Horizontal

Connections
AC Power: Seetronic Powerkon IP65
DMX, link mode in/out: 3 and 5-pin locking XLR

Electrical
US Model:AC power: 120 V, 60 Hz
Main fuse: 15A, 250 V
Typical power and current: 1700 W

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Included Items
Fluid reservoir, .8 Gal Tank
Power input cable: Seetronic® Powerkon IP65

Accessories

Fog Scent Additives


Approved fluids*:

Poseidon Aqua Fog Fluid Short Distance

Poseidon Aqua Fog Fluid Long Distance

Froggys Fog FFM‐POSEIDON‐AQUA2 (Froggys Fog Poseidon Aqua 2)
