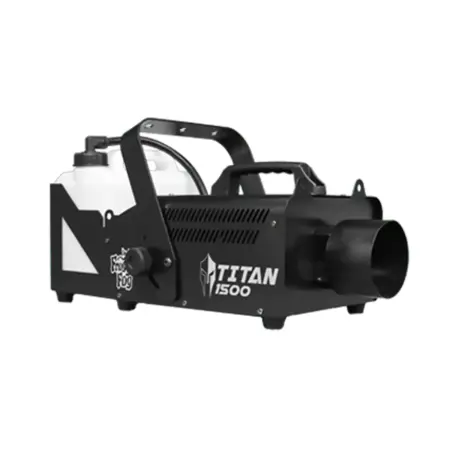

The Titan 1500DMX is a powerful 1550W Fog Machine with over 25,000CFM. The 1500DMX features both 3 and 5 pin DMX, 4 Button Control Panel with LED SSD and timer functions. The Oversized Heater Core increases run times, Quick Ready Fog Technology (QRFT) has you ready to fog in less than 10 seconds after full cycle and it is ready to fog, and Advanced Low Fluid Sensing shuts down the machine when you run out of fluid to protect the heater core.


FEATURES:

1,550W Heater Core
25,000 CFM
Oversized Heater Core for increased run times
Quick Ready Fog Technology (QRFT) - Less than 10 seconds after full cycle and it is ready to fog
Advanced Low Fluid Sensing
Blue Powercon Connection
4 Button Control Panel with LED SSD
3” Venturi Style Nozzle Connection
Timer Control Included (Wireless Optional)

SPECIFICATIONS:
Physical
Length: 21.3 in. Box: 25.5 in.
Width: 12 in. Box: 14.4 in.
Height: 11.5 in. Box: 13.6 in.
Net Weight: 23.5 lbs Gross: 28.7 lbs.


Performance
Fluid consumption (100%): 102ml/min
Maximum operating time, maximum output: 49 min
Ready time: 4 Min initial, 10 Sec. Reheat


Control and Programming
Control options: DMX, Wired Remote, Wireless Remote, Timer
Control parameters: Continous or timer-controlled output
Fog Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing



Construction
Housing: Steel and aluminum
Color: Black

Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: 5L drop-in reservoir
Hanging bracket: Integrated yoke with safety attachment point

Installation
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal

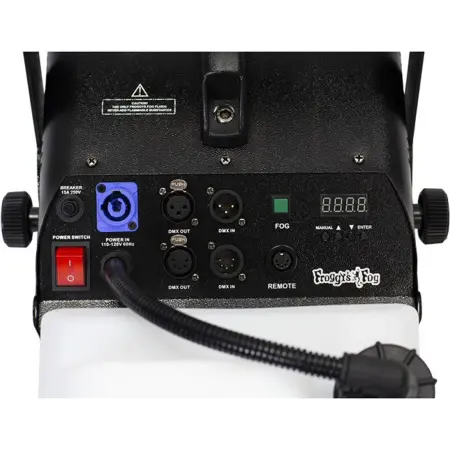

Connections
AC Power: Blue PowerCon
DMX, link mode in/out: 3 and 5-pin locking XLR
Remote control: Froggy's Timer Remote
Electrical
US Model:AC power: 120 V, 60 Hz
Main fuse: 15A, 150 V
Typical power and current: 1550 W

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:


Included Items

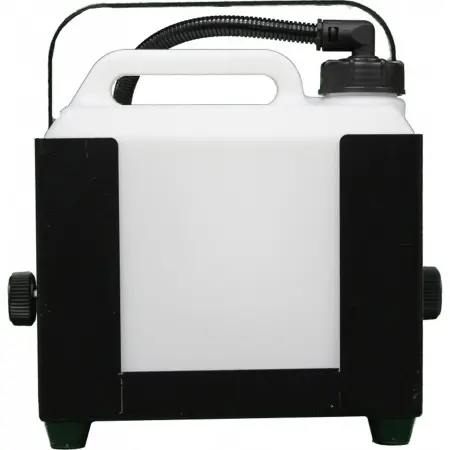

Fluid reservoir, 5L Tank
Froggy's Fog Wired Controller
Power input cable: Blue PowerCon

Accessories
Wired Remote
FFM-RM-WR5 - Wireless Remote (Optional)


Approved fluids*:
Bog Fog

QuikBlast

Backwood Bay

Technofog

Velcocity

Froggy's Fog TITAN 1500-DMX (Froggys Fog TITAN 1500DMX)
