Furman P-8 PRO C
20A Classic Series Power Conditioner

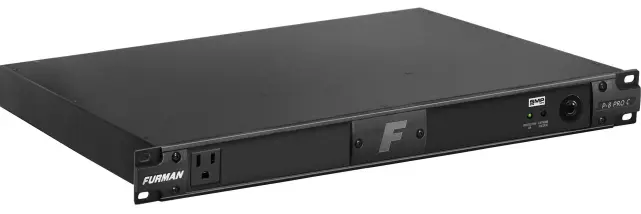

The P-8 PRO C Classic Series Power Conditioner from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman's Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS).
Furman P-8 PRO C Features:
Surge Protection - Furman's exclusive SMP technology provides the highest level of surge & spike protection available
Noise Filtration - LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity
Voltage Protection - Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
Diagnostic Lights - LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
Isolated outlet banks minimize inter-component interference and noise contamination
Wall Wart Spacing - Three widely spaced outlets accommodate bulky AC power transformers
20 Amp rating featuring a high inrush magnetic circuit breaker for added protection

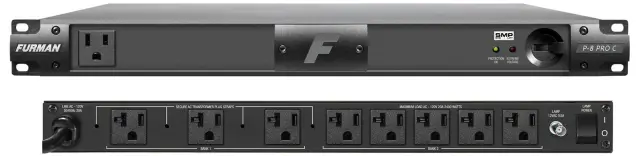

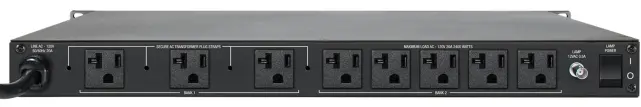

Nine total outlets (8 rear panel outlets and one front panel convenience outlet)
Rear panel BNC lamp connector powers any standard gooseneck lamp for rear rack illumination
Furman P-8 PRO C Applications:
Instrument Rigs - Furman's advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman's advanced Linear Filtering Technology, you'll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.
Recording - With Furman's advanced Linear Filtering Technology you'll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman's advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it's enough to power your whole home studio.
DJ Equipment - Furman's advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.
Pro Audio - Furman's advanced Linear Filtering Technology keeps your equipment safe and sounding clean. Whether you're setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.
Furman P-8 PRO C Specifications:
Maximum Output Current: 20 amps
BNC Socket with Switch: Rear rack lamp, 12VAC 500MA max (lamp not included)
Operating Voltage: 90 to 140 VAC
Over Voltage Shutdown: 140 VAC typically
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 188 Vpk @ 3,000 Amps (133 VAC RMS)
Maximum Surge Current: 6,500 Amps
Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10MHz. Linear attenuation curve from 0.05 - 100 ohms line impedance
Dimensions: 19" W x 10.5" D x 1.75" H
Weight: 11 lbs.
Power Consumption: 12 watts
Safety Listing: CSA UL1449, CE, NRTL-C
