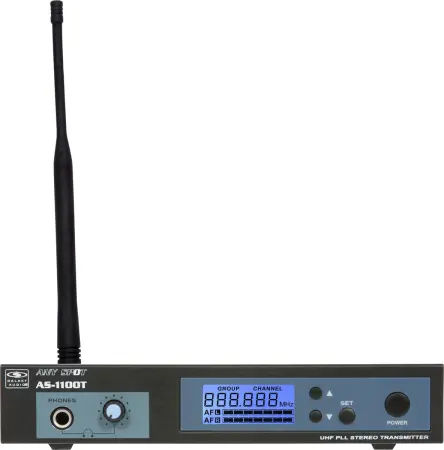

Galaxy Audio AS-1100T (Galaxy AS110T Transmitter)

Transmits in Stereo or Mono
Light Up LCD Display
Channel Number and Frequency
120 Selectable Channels
XLR/¼" Combo Input
AF L/R Indicator
RF Output
10 mW

AS-1100T Transmitter
Max Audio input level: +6dBV
Gain Adjustment Range: 40dB
Input Impedance: 100kΩ
Dimensions: 1.5" x 8.3" x 3.78" (38mm H x 212mm W x 96mm D)
Weight: 21oz. (605 g)
Power Requirements: 12-18 V dc at 300mA supplied by external power supply
XLR input: Impedance balanced
Pin1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
