This product has been discontinued by the manufacturer. Please contact us to find a replacement.

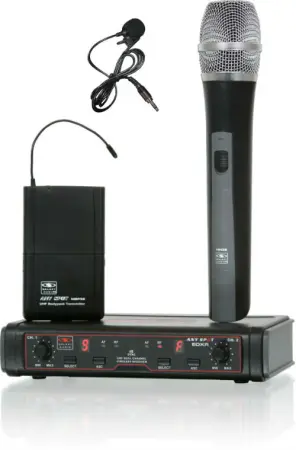

The EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.
200' Range
Dual Channel Receiver
16 Selectable Channels
UHF Frequency
Internal Antennas
IR Sync Transmitter to Receiver
EDXR Receiver
AF & RF Indicators
IR Sync
1 Mixed 1/4" Output, 2 Balanced Male XLR Outputs
2 Internal Antennas (Non-Diversity)
Rugged Plastic Casing
HH38 Transmitter
Dynamic Cardioid
On/Off Switch
Plastic Casing
IR Sync w/ receiver
MBP38 Transmitter
IR Sync w/ receiver
Mic/0dB/-10 dB pad
On/Off/Standby Switch
Durable Plastic Casing
LV13-UBK Uni-Directional Lav
Uni-Directional
Lapel / Lavalier
Specifications:
Available Channels
16
Frequency Range
CODE D 584-607 MHz
Transmitter Output Level
10 mW
Band
UHF
Operating Range
Under Typical Conditions 200' (61 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response
(+/-3 dB) 60 Hz ~ 16 kHz
Total Harmonic Distortion
(+/-30 kHz deviation 1 kHz tone): <1%
Dynamic Range
>90 dB A-weighted
Operating Temperature Range
14ºF to 122ºF (-10 Cº to +50 Cº), battery characteristics may limit this range.
EDXR RECEIVER
Audio Output Level
XLR Connector (into Ohms 600 load) -12 dBV
1/4" Connector (into 3k Ohms load) -18 dBV
Output Impedance
XLR Connector 200 Ohms
1/4" Connector
1k Ohms
Sensitivity
-92 dBm
Image Rejection
>92 dB
Dimensions
1.7" x 8.3" x 5" (42 x 210 x 127 mm)(H x W x D)
Weight 13.6 oz (390 g)
Power Requirements
12-18 V dc at 300mA, supplied by external power supply
HH38 HANDHELD TRANSMITTER
Max Audio Input Level
0 dBV
Gain Adjust
Trim pot
RF Output
10 mW
Frequency Response
70 Hz - 10 kHz
Dimensions
10.8" x 1.9" (275 x 47 mm) (L x Dia.)
Weight
6.9 oz. (195 g) (without batteries)
Power Requirements
2 “AA” size alkaline or rechargeable batteries
Battery Life
About 8 hours (Alkaline)
MBP38 BODY PACK TRANSMITTER
Max Audio Input Level
0 dBV to +20 dBV
Gain Adjust
Mic/0 dB/-10 dB
RF Output
10 mW
Input Impedance
5k Ohms
Dimensions
3.3" x 2.6" x 1" (85 x 65 x 23 mm) (H x W x D)
Weight
2.8 oz (80 g) (without batteries)
Power Requirements
2 “AA” size alkaline or rechargeable batteries
Battery Life
About 8 hours (Alkaline)
