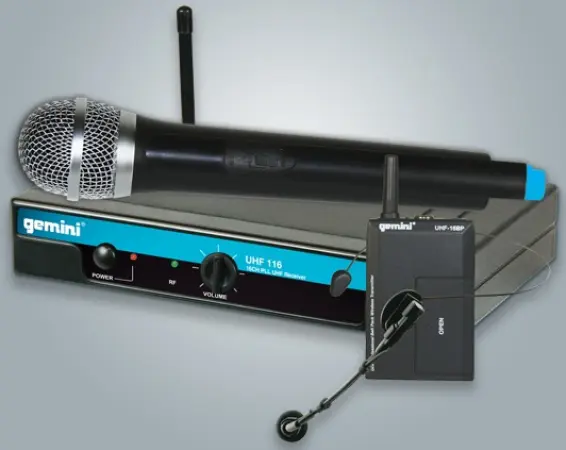

Gemini UHF116M (Gemini UHF-116 M)

Available with Handheld Mics (M series) or Headset/Lavaliere Mics (HL series)

The Gemini UHF-116 UHF Wireless Microphone System is designed to provide clear, natural sound in any environment over longer distances. The UHF-116 system provides users with a range of up to 250 feet over 16 selectable frequencies to ensure optimal transmission with no interference.

NOTE: the UHF-116 comes in two different configurations:
- UHF-116M has a HANDHELD unidirectional dynamic mic
- UHF-116HL comes with HEADSET/LAVALIER combo mic

The UHF-116M includes the UHF-116 receiver and the UHF-16 HHM unidirectional dynamic pop resistant microphone for feedback rejection and high-SPL handling.
The UHF-116HL comes with the UHF-116 receiver and the HSL-08 combo headset/lavaliere that provides crisp, clear hands free sound.

The UHF-116 provides unmatched performance and affordability in a wireless system for presentations, houses of worship, vocalists, musicians, DJ’s and public speaking venues.

High quality (single channel) UHF receiver with 250’ range
US: 16 operating frequencies between 682 MHz and 697 MHz
EUR: 16 operating frequencies between 854 MHz and 864 MHz
Phase Locked Loop (PLL) circuitry for increased reception
RF and AF LED indicators for monitoring incoming signal strength
Auto mute with squelch control and built-in noise reduction
Front panel output level control
Standard (1/4” 6.3mm jack) output
Unidirectional, handheld dynamic microphone (UHF-116M)
Combo headset/lavaliere (UHF-116HL)
Low battery LED indicator
Microphone On/Off switch

US Frequencies:
CH 1 682.35 MHz CH 9 690.1 MHz
CH 2 683.25 MHz CH 10 690.75 MHz
CH 3 683.85 MHz CH 11 691.5 MHz
CH 4 684.85 MHz CH 12 692.5 MHz
CH 5 685.75 MHz CH 13 693.6 MHz
CH 6 686.6 MHz CH 14 694.85 MHz
CH 7 687.5 MHz CH 15 695.7 MHz
CH 8 688.75 MHz CH 16 697.1 MHz

Europe Frequencies:
CH 1 854.1 MHz CH 9 860.2 MHz
CH 2 855.75 MHz CH 10 861.3 MHz
CH 3 856.5 MHz CH 11 861.65 MHz
CH 4 857.35 MHz CH 12 862.25 MHz
CH 5 857.9 MHz CH 13 863.05 MHz
CH 6 858.55 MHz CH 14 863.6 MHz
CH 7 859.05 MHz CH 15 864.15 MHz
CH 8 859.75 MHz CH 16 864.7 MHz
