Hanson Pro Systems Original System 6 (HPS The Original System 6)

HPS-BPWDMXLED SYSTEM 6 Features

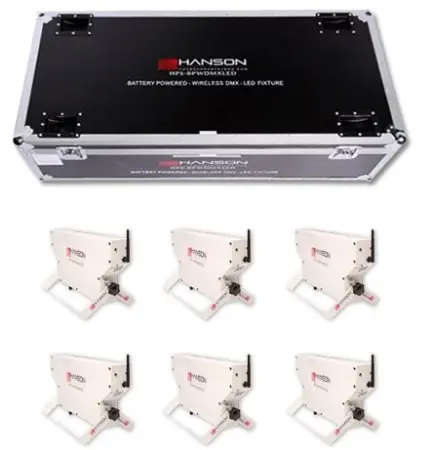

Complete system includes 6 fixtures and 1 road case/charger

(6) HPS-BPWDMXLED Battery Powered Wireless DMX LED Fixture

Battery Powered & Wireless DMX
Rechargeable Battery with up to 18 hours of battery life
Digital battery power indicator 0-100%
Wireless DMX-512 protocol
Built in 2.4G receiver / transmitter for wireless DMX operation (Optional: WDMX)
126 auto jumping channel frequencies, high anti-jamming ability to ensure work reliability
7 ID codes for multiple transmitters and receiver use
Wired DMX-512 protocol
3-pin DMX input and output connectors (Optional: 5 pin DMX)
RGBW color mixing (Optional: RGBA)
24 -1 Watt Edison LED 6 red, 6 green, 6 blue, 6 white
45 degree lenses (Optional: 15º,25º,30º lenses)
Electronic Dimming 0-100%
Operation menu with function buttons and DMX control mode
LED display for address and function setting
Control DMX channels 4, 8, 24 or 28 CH
Strobe 1-255 / Color strobe 1-255
Master / Slave Synchronization via wireless and wired
Operation modes: DMX, Sound Active and Auto Modes
Built in microphones for sound active mode
LED chases (Adjustable Speeds)
Dual bracket for floor stand and / or hanging mount
Dual eye bolts for safety cables
LIGHTWEIGHT for easy transport (12 LBS)
COMPACT for low visibility
VERSATILE LED wireless lighting fixture
AC power auto ranging (100-240v 50/60HZ) In/Out
Length 17 in (431.8 mm)
Width 3 in (76.2 mm)
Height 11 in (279.4 mm)
Weight 12 lbs (5.44 kg)
  Now Available On All HPS Products

(1) HPS-BPWDMXLED CASE 6 Road Case For HPS-BPWDMXLED Stores Up to 6 Fixtures

Stores up to 6 fixtures with an additional slot that can be used to charge/store another light or cables. Plug in the case to the power outlet and it will charge them all simultaneously. The case has two built in fans that allow you to keep the lid closed while charging with no worry of it overheating. 5 hours later all your fixtures will be fully charged and ready for your next event.

Length 30 in (762 mm)
Width 25 in (635 mm)
Height 20 in (508 mm)
Weight 120 lbs (54.4 kg) Total weight with all 6 fixtures inside.
(1) HPS-DMX-WTR Wireless DMX Transmitter & Receiver

DMX512 wireless transmitter / receiver
3-pin DMX input and output connectors
2X8 bit LCD to display working condition and parameter
126 auto jumping channel frequencies, high anti-jamming ability to ensure work reliability
16 ID coding groups for setting
7 ID codes for multiple transmitter use
9 ID codes for multiple receiver use
Input voltage ：9-12VDC 300MA MIN
Communication distance：1,300ft visible distance approx. 400M
Working frequency： ISM,126 channels
Max transmitting power rate：20dBm
Length 5.78 in (147 mm)
Width 2.95 in (75 mm)
Height 1.69 in (43 mm)
Weight 0.79 lbs (0.35 kg)
Available in black or white
