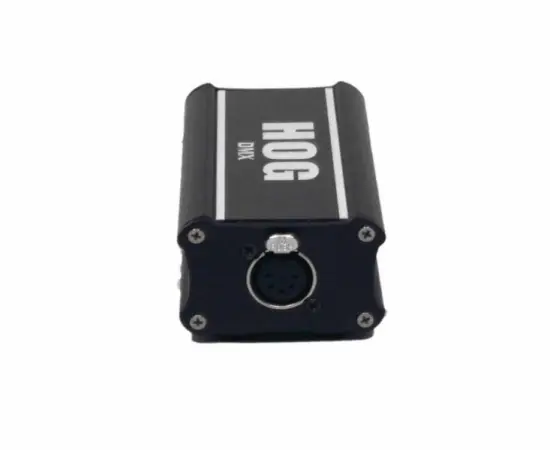

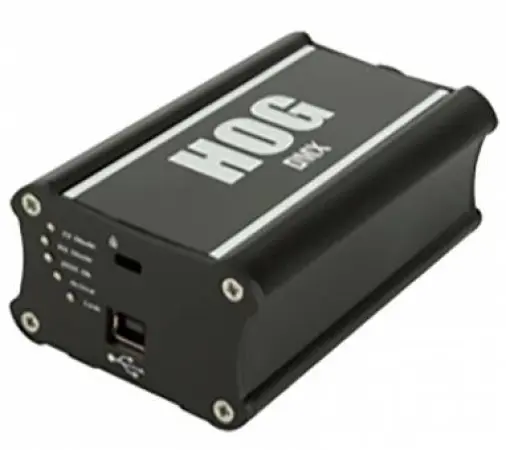

Packaged in a sleek, black metal package, the Wholehog DMX Widget provides a single universe of DMX 512 output from any Hog 4 OS consoles and any Hog 4 PC. Up to eight DMX Widgets may be connected at once via a USB Hub to provide 8 full universes of DMX 512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only four DMX Widgets can be connected to the Road Hog 4.

This configuration provides an excellent solution for backup and playback only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing 4,users can configure powerful control solutions that precisely suit their needs and budgets.

For Hog 4 PC users, attaching the DMX Single Widget also unlocks one univers of DMX over Art-Net and E1.3.1 (sACN).

FEATURES:

USB connection to Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC computers
1 x XLR 5-pin DMX 512 output
Up to eight units can be connected via a USB Hub (except to Road Hog 4, where four can be connected)

SPECIFICATIONS:

512 channels total output capacity
Status LEDs for power and data in/out
1 x XLR 5-pin DMX, 1 x USB-B
Precision machined aluminium panel with wear-resistant anoprinted legends
Rugged, sleek metal package that can be stacked
Kensington Security Slot
Compatible with Hog 4, Full Boar 4, Road Hog 4, Hog 4 PC,
Wholehog 3, Road Hog Full Boar, Hog iPC and Hog 3 PC
Fully powered via USB port
Width: 65mm / 2.5"
Depth: 106mm / 4.2"
Height: 45mm / 1.8"
Weight: 0.34kg / 0.75lb

High End Systems Hog4-USB Widget (High End HOG 4 USB-Widget)
