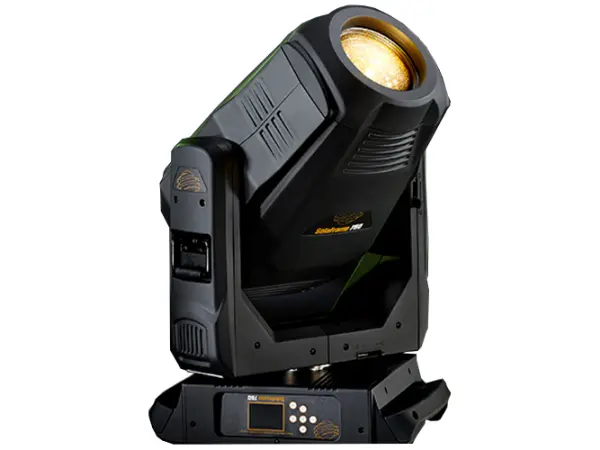

The SolaFrame 750 is the smallest framing fixture in the Sola Series group of automated tools. As a member of the SolaFrame LED family of offerings, this fixture is designed for precise lighting control and aerial effects. Featuring full-frame, four-plane shutters engineered for accuracy and speed, these instruments retain the effects packages from the SolaSpot series, including CMY color mixing, Linear CTO, fixed and indexing gobo wheels, animation effects, prism, iris and frost.

This model will allow you to blow your mind and not your budget as it features a compact footprint but a huge feature set, making the SolaFrame 750 an ideal fit for smaller to medium-sized venues, with its 11,300 lumens you can easily cut through the competition. With 6 – 50 degree zoom, rotating gobo wheel plus fully continuous animation and much, much more, SolaFrame 750 offers the widest array of effects currently available in a fixture of its size. This version also includes a road case to assist with safe and easy transport of this LED fixture.

High End Systems SolaFrame 750 Features:
Small footprint, bright output
6°-50° Zoom
Four full-curtain framing shutters
Rotating gobo wheel
Fully-continuous animation wheel
Iris, three-facet prism, frost
CMY color mixing
Linear CTO
Three active cooling modes
High End Systems SolaFrame 750 Specifications:
Item Number: 2560A1200

Optical:
LED: White 270 Watts
Extremely long life: >50,000 hours
Lumens: 11,300
Color Temp: 7000 Kelvin
CRI: >75
Beam Angle: Zoom 6° - 50°
Strobe Effect: 1-25 Hz and pulse effect
Motorized Focus
Prism: 3-Facet
Dimmer: 0% - 100% full range dimming
Color Wheel: 7
Rotating Gobo: 6
Framing: Yes
Iris: Yes

Mechanical:
Pan and tilt motion with 8 or 16 bit control resolution
Smooth, precise mechanical movement system supporting:
Pan: 540° (630°optional)
Tilt: 265°
Variable speed pan and tilt motion
Position memory, auto correction if fixture is bumped
Weight: 62 lbs
Colors:
CMY & CTO variable color mixing for infinite color possibilities
Color wheel including seven interchangeable dichroic filters + open, indexed, rainbow effect
Projection:
Rotating gobo wheel:
Including seven interchangeable rotating, and indexed, gobo + open
“Slot in & out” gobo wheel system
Rotating prism
Stepless iris, 5% - 100% linear change iris, pulse iris effect
Stepless frost, 0% - 100% linear change frost
Animation wheel: Rotate special dynamic flame or water effects

Display:
Advanced full color LCD screen
Internal rechargeable battery, enable users to access menu for address modification or other settings.
Automatic lock out after 15 seconds (to prevent unintentional modifications)
