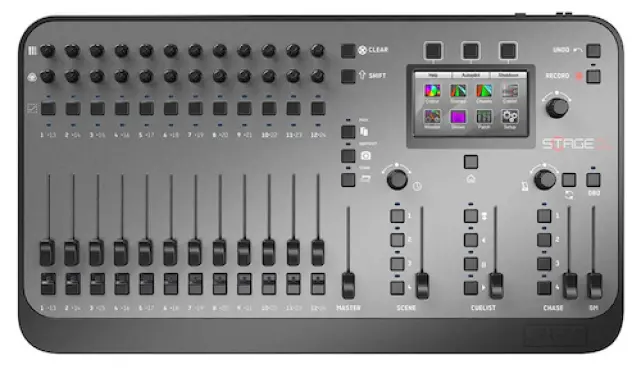

Designed specifically for LED fixtures, but just as suitable for conventional lights, the Stage CL gives you full control of your LEDs and is incredibly easy to use. Jands Stage CL gives you all the manual controls and automation you need to get the most out of your LEDs. Best of all, it’s so easy to use you don’t need to know anything about lighting.
Simple Manual Controls - Each of the twelve channels has a Saturation encoder and a Hue encoder that you can adjust to set the colour you want. As you turn the dials, a LED on the channel shows the colour you’re creating. This is so intuitive that even someone with no experience in lighting can grasp it immediately. And of course, each channel has the traditional fader fader and flash button to set the intensity of the light.
Grouping Channels - Need to speed things up? You can group any number of channels together and use just one set of pots to set the colour for all of them. There’s a selection of colour presets to choose from, and you can switch between full and half saturation, both at the click of a single button.
All the Automation You Need - As well as giving you total manual control, the Stage CL’s easy to use store features enable you to create sophisticated shows quickly and easily.
One-Press Recording - To record a sequence, simply press the Record button, adjust your lights, then press one of the Scene, Chase or Cuelist buttons to store it. To play it back, just tap the button where you stored it. You can adjust the playback speed and chase rate manually with the fade time and chase speed controls. To set up a chase, you can save each step or create a pattern and the Stage CL will automatically build the chase to run across the lights you’ve chosen. You can save multiple cues and organize them however you like using the touch screen, then back them up to a memory stick or portable drive through the USB ports on the back panel.
Take a Snapshot - Need to make a quick change on the fly? Tap the Snapshot button to save the look you have on stage. The Stage CL holds that look while you adjust any of the other controls to create your next look, then fades into it when you tap the button again.
Simple Touchscreen Interface - You can do just about everything without needing the screen, but when you want to get into detail, the Stage CL touch-screen display provides an easy to use interface. Here you can patch your lights, monitor playback, edit scenes, chases & cues, adjust fade times, apply preset colours and set up the console preferences.
Compact, Functional and Funky - The Stage CL is more than a superb set of lighting controls, it looks and feels great too.
A Quality Finish - The Stage CL has high-quality 60mm faders, push-button encoders, responsive tactile buttons and multi-colour LED indicators, all packaged in a smooth and compact chassis that you can carry in one hand.
Room to Move - With the Stage CL you can control up to 512 DMX channels, connecting either through the DMX-512 output or the Ethernet output (Art-net).
4.3" Touchscreen LCD (480 x 272 px)
Color window with inbuilt patterns, chases, and favorites
Scene, Cuelist, and Chase windows for editing and monitoring
Extensive fixture library and inbuilt fixture editor
Auto-Pilot mode for unattended operation
Save multiple show files and backup to USB flash drives
Inputs and Outputs:
One DMX output
One Ethernet / Network port (compatible with sACN & Art-Net)
Two USB 2.0 connectors
12V Power Input
Power Supply: 12 VDC ±10% 2A
Power Consumption: 24 W max
Mains Connector: 5.5 / 2.1 mm coaxial DC power socket
Processor: Atmel ARM9
Flash Storage: 256 MB
Ambient Temperature: 0°C to 40°C
Touchscreen: 480 x 272 pixel TFT
DMX512: 5 pin AXR
Ethernet: 100 Mbit RJ45
USB: Two Type A High Speed
Dimensions: 520 x 290 x 80 mm
Net Weight: 8 kg
